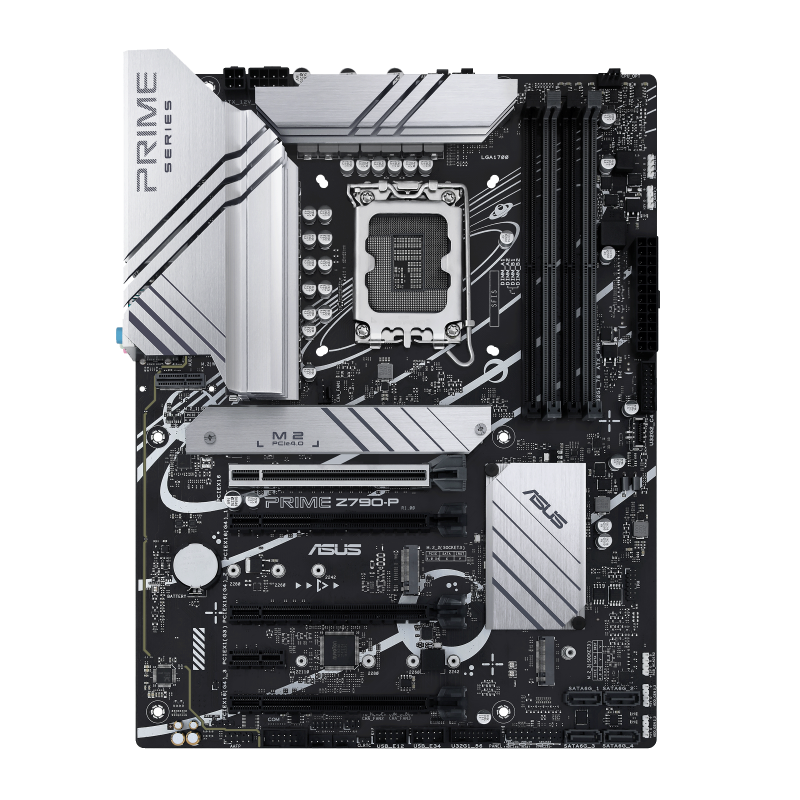

ASUS PRIME Z790-P LGA 1700 DDR5 ATX MOTHERBOARD
Cash Price₨16,900 inc. Vat
Payment Option
Credit by Rogers Finance: ₨19,435
Apply with Rogers code - RTDL01
Credit by Rogers Finance: ₨19,435
Apply with Rogers code - RTDL01
7
People watching this product now!
Description
14(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
Gen 5 Slot for Graphics Card
AEMP II for Ultimate DDR5 Performance
USB 3.2 Gen 2×2 Type-C® & Thunderbolt (USB4®) Support
2.5 Gb Ethernet
Intelligent Control
-
Al Cooling II
Customization
-
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
-
Expansion Slots
• 1 x PCIe 5.0 x16 SafeSlot Core+
• 3 x PCIe 4.0 x16
• 1 x PCIe 3.0 x1 -
14(50A)+1(60A)+1 Power Stages
-
4 x DIMM
• DDR5 7200+(OC)
• Dual Channel
• AEMP II
• OptiMem II -
3 x M.2 Slots
• 1 x M.2 22110 (PCIe 4.0 x4 mode)
• 1 x M.2 2280 (PCIe 4.0 x4 mode)
• 1 x M.2 22110 (PCIe 4.0 x4 & SATA modes)
-
VRM Heatsinks
-
One M.2 Heatsink for two M.2 Slots
-
CPU Fan Headers
-
AIO Pump Header
-
CHA Fan Header
-
Chipset Heatsink
-
CHA Fan Headers
-
1 x Aura RGB Header
-
1 x Addressable Gen 2 Header
-
1 x Aura RGB Header
-
2 x Addressable Gen 2 Headers
-
DisplayPort
-
HDMI®
-
2 x USB 2.0 ports (Type-A)
-
2 x USB 3.2 Gen 1 ports (Type-A)
-
2 x USB 2.0 ports (Type-A)
-
Realtek 2.5Gb Ethernet
-
1 x USB 3.2 Gen 2×2 Type-C®
-
1 x USB 3.2 Gen 2 port (Type-A)
-
3 x Audio Jacks
-
1 x Vertical M.2 slot (Key E)
-
1 x USB 3.2 Gen 1 Header
-
1 x USB 3.2 Gen 2 Type-C® Connector
-
Thunderbolt™ (USB4®) Header
-
2 x USB 2.0 Headers
-
1 x USB 3.2 Gen 1 Header
-
4 x SATA 6Gb/s
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
COOLING
PRIME Z790-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
Removable captive screws reduce risk of drops or loss during heatsink removal.
M.2 Heatsink
The flexible M.2 heatsink with removable captive screws can take care of the M.2_1 or M.2_3 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
PRIME Z790-P features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
PERFORMANCE
The PRIME Z790-P motherboard is built to handle the high core counts and bandwidth demands of 14th, 13th and 12th Gen Intel® Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME Z790-P is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard’s link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
