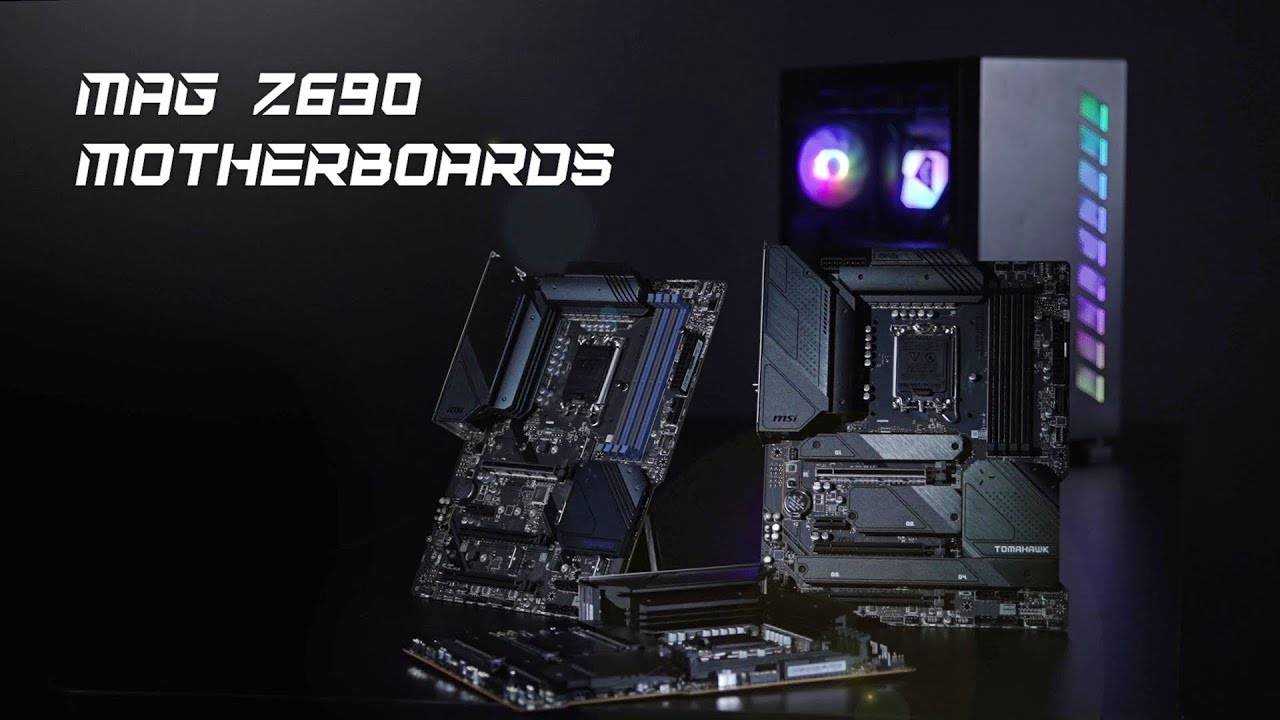

MSI MAG Z690 TOMAHAWK WIFI – LGA 1700 DDR5 ATX GAMING MOTHERBOARD
MAG Z690 TOMAHAWK WIFI
EXCLUSIVE FEATURE
Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
16+1+1 Duet Rail Power System
An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MAG Z690 TOMAHAWK WIFI
PREMIUM THERMAL SOLUTION
Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.
MAG Z690 TOMAHAWK WIFI
HIGH-SPEED TRANSMISSION
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Audio Boost 5
ALC4080 Codec with top quality caps for the most immersive gaming experience.
Memory Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen 5 Solution
The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
POWER SOLUTION
DIY FRIENDLY
CORE BOOST
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
LIGHTNING SPEED
MEMORY
LIGHTNING GEN 5 PCI-E
LIGHTNING GEN 5 PCI-E
MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation.
SMT PCIE 5.0 SLOT
MSI motherboards adopted the advanced SMT(Surface Mount Technology) PCI-E slot to diminish interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
NETWORKING
AUDIO
USB
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
₨21,900 inc. Vat
Credit by Rogers Finance: ₨25,185
Apply with Rogers code - RTDL01
MAG Z690 TOMAHAWK WIFI
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6400(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR5 MEMORY | 6400+(OC) , 6200(OC) , 6000(OC) , 5800(OC) , 5600(JEDEC) |
| 5400(JEDEC), 5200(JEDEC) , 5000(JEDEC) , 4800(JEDEC) MHz | |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 192 |
| PCI-E X16 | 3 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 4 |
| RAID | 0/1/5/10 |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E module |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX |
| DIMENSION | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
