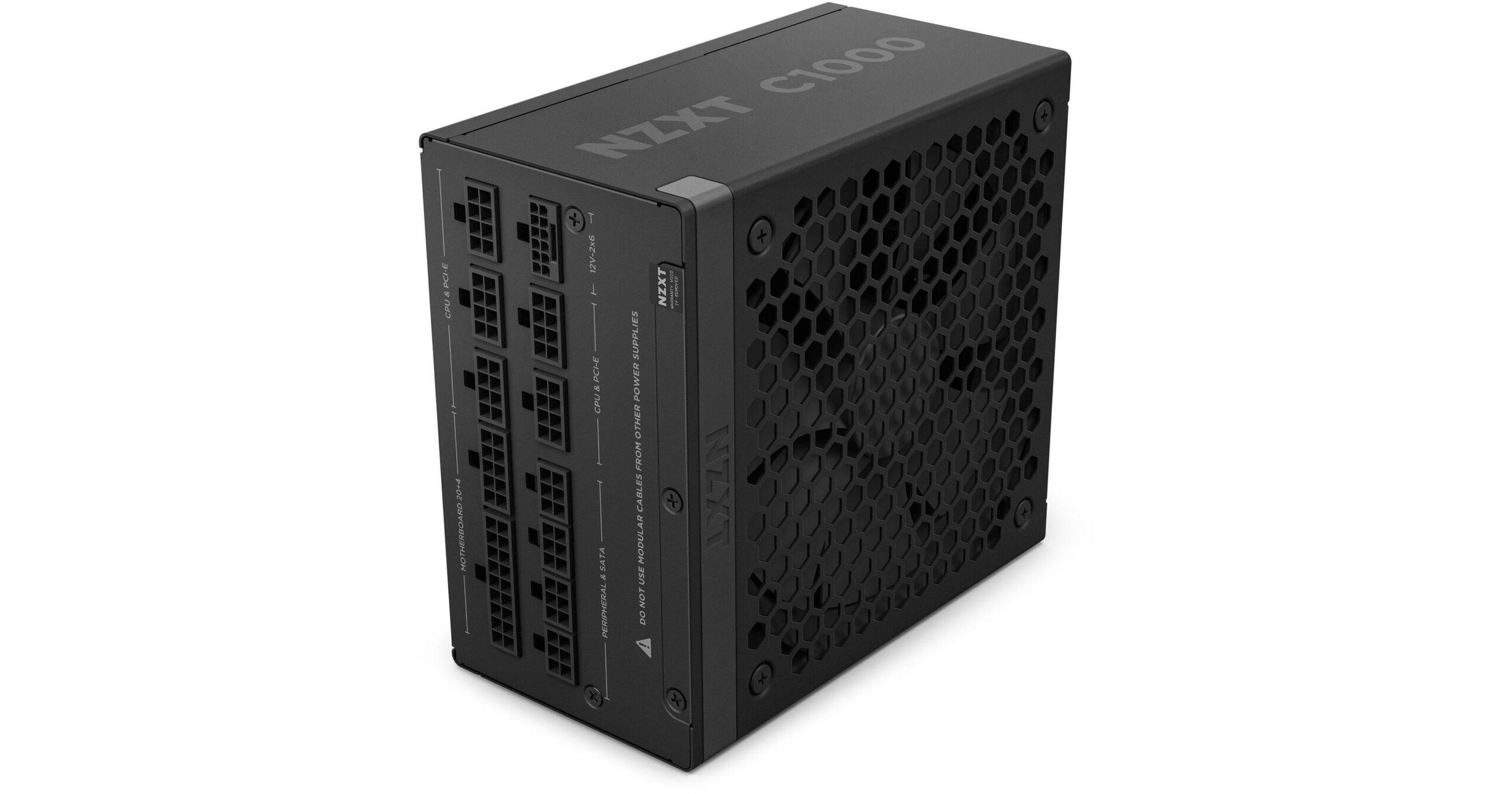

NZXT C Series 80 Plus Gold 1000W PSU (2022)

Output Connectors

• 24-pin ATX power:1
• 4+4-pin CPU power:2
• 6+2-pin PCIe power:6
• SATA power:6
• Peripherals:6

Cable Specs

• 24-pin ATX power:600 mm, Nylon sleeving
• 4+4-pin CPU power:700 mm, Nylon sleeving
• 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
• SATA power:500 + 150 mm
• Peripherals:500 + 150 mm

AC Input Rating

• 100 – 240Vac:13A-6.5A 50Hz-60Hz

DC Output Rating

• +3.3V and +5V:22A (120W)
• +12V:83.5A (1002W)
• -12V:0.3A (3.6W)
• 5Vsb:3A (15W)
• Total:1000W

Operation

• PF Correction:Active @0.96
• MTBF:100,000 hours
• Temperature:0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

Energy Efficiency

• Rating:80 Plus Gold
• 20% loading:91.97% @115Vac
• 50% loading:91.79% @115Vac
• 100% loading:88.52% @115Vac

Fan Specs

• Dimensions:135 x 135 x 25 mm
• Speed:0-2300 ± 10% RPM
• Airflow:93.02 CFM (Tpy.)
• Noise:44.5 dBA max
• Bearing:Fluid Dynamic Bearing (FDB)

General

• Dimensions:150 x 150 x 86mm
• Material(s):Steel, PCB and Plastic
• Compliance Standard:ATX12V v2.52 / EPS12V v2.92
• Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
• Warranty:10 years
• Model Number:PA-0G1BB

UPC

• UPC (TW):815671017512
• UPC (CN):815671017444
• UPC (AR):815671017451
• UPC (US):815671017468
• UPC (EU):815671017475
• UPC (UK):815671017482
• UPC (AU):815671017499
• UPC (JP):815671017505
• UPC (WO):815671017536
• UPC (IN):815671017529

EAN

• EAN (TW):5060301697823
• EAN (CN):5060301697755
• EAN (AR):5060301697762
• EAN (US):5060301697779
• EAN (EU):5060301697786
• EAN (UK):5060301697793
• EAN (AU):5060301697809
• EAN (JP):5060301697816
• EAN (WO):5060301697847
• EAN (IN):5060301697830
