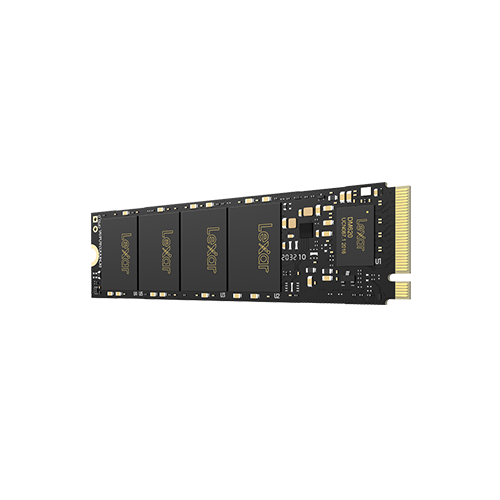

Lexar® NM620 512GB M.2 2280 NVMe SSD
High-speed PCIe Gen3x4 interface: 3300MB/s read and 3000MB/s write – NVMe 1.4 supported; M.2 2280 form factor with 3D NAND; Get 6x the speed of a SATA-based
WHATSAPP US ON 52578244 FOR PRICE
14
People watching this product now!
Description
Next-Level performance for intensive workloads
Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up 3500MB/s read and 3000MB/s write1. It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.
Ideal for demanding creative and gaming
With speeds of up to 3500MB/s read, enjoy 6x the speed of SATA SSDs3. The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.
Features LDPC for added reliability
Built to last
Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.
Efficient
Reduced power consumption and cooler operation makes the battery life last longer than a traditional hard drive.
Rigorously Tested
All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.
Specifications
Form Factor
M.2 2280
Interface
PCIe Gen3x4
Performance
256GB —sequential read up to 3500MB/s, write up to 1300MB/s
IOPS: up to 92/240K
512GB —sequential read up to 3500MB/s, write up to 2400MB/s
IOPS: up to 200/256K
1TB —sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
2TB —sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Dimension (L x W x H)
80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09”
Weight
9g
Warranty
5 year limited warranty
Shock Resistant
1500 G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW
2TB:1000, 1 TB: 500 TB, 512 GB: 250 TB,, 256 GB: 125 TB
DWPD
1 TB: 0.44, 512 GB: 0.44, 256 GB: 0.44
NAND flash
3D TLC
MTBF
1,500,000 Hours
1 Up to 3500MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.
2Shock resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.
3Comparison based on internal testing. Actual performance may vary.
[Note]:]
Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.
Actual usable memory capacity may vary. 1GB equals 1 billion bytes
