HIKVISION 8 MP Smart Hybrid Turret with Audio, 30M

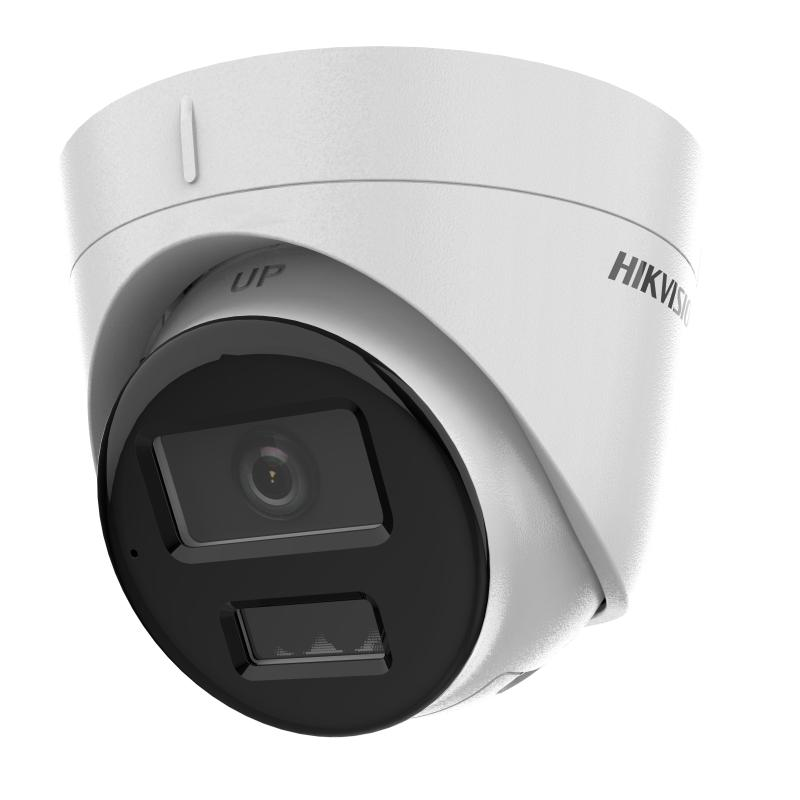

The Hikvision DS-2CD1383G2-LIU is an 8 MP Smart Hybrid Light Fixed Turret Network Camera delivering 4K Ultra HD (3840 × 2160) resolution with intelligent Human & Vehicle Detection. It features Smart Hybrid Light technology (IR + White Light), up to 30 m illumination range, built-in microphone, H.265+ compression, optional microSD storage up to 512 GB, 120 dB True WDR, and an IP67 weatherproof housing for reliable day and night surveillance.
₨6,000 inc. Vat
Credit by Rogers Finance: ₨6,900
Apply with Rogers code - RTDL01
- High quality imaging with 8 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Specification
-
Camera
-
Lens
-
DORI
-
Illuminator
-
Video
-
Audio
-
Network
-
-
Interface
-
Event
-
General
-
Approval
- Camera
- Image Sensor1/2.7″ Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
- Lens MountM12
- Iris TypeFixed
- ApertureF2.0
- DORI
- DORI
2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes
- Reset Key-F: Yes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- General
- Power
12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
- MaterialMetal & Plastic
- DimensionØ110 mm × 93 mm (Ø4.33″ × 3.66″)
- Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
- WeightApprox. 385 g (0.85 lb.)
- With Package WeightApprox. 586 g (1.3 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
