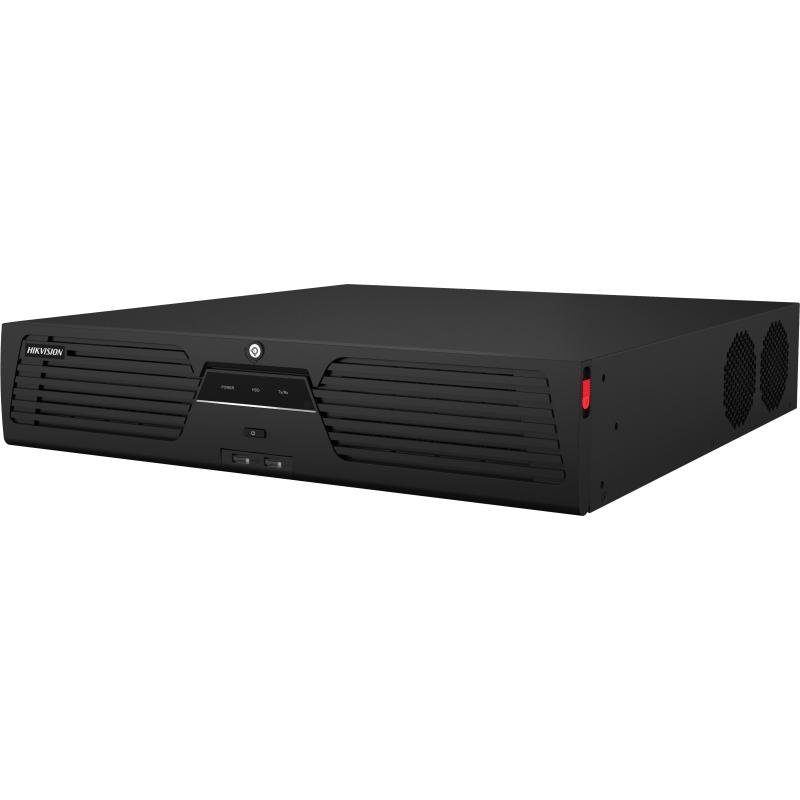

HIKVISION 64 Channel 2U, Acusense 4K RAID NVR
The Hikvision 64-Channel 2U AcuSense 4K RAID NVR is a high-performance AI-powered network video recorder designed for large-scale surveillance projects. Supporting up to 64 IP camera channels, advanced AcuSense deep learning technology, 4K Ultra HD video output, and RAID storage protection, it provides intelligent human and vehicle detection, reliable data storage, and efficient video management for enterprise security applications.
₨74,000 inc. Vat
Payment Option
Credit by Rogers Finance: ₨85,100
Apply with Rogers code - RTDL01
Credit by Rogers Finance: ₨85,100
Apply with Rogers code - RTDL01
10
People watching this product now!
Description
-
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
- Up to 64-ch IP camera inputs
- Up to 16-ch 1080p decoding capability
- Up to 320 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
Specification
-
Intelligent Analytics
-
Facial Recognition
-
Motion Detection 2.0
-
Perimeter Protection
-
ANPR
-
Video and Audio
-
Decoding
-
Network
-
RAID
-
Auxiliary Interface
-
General
-
Certification
- Intelligent Analytics
- AI by NVRN/A
- AI by CameraN/A
- EngineN/A
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 15KB, total capacity ≤ 150 MB)
- Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison4-ch face picture comparison alarm
- Motion Detection 2.0
- By CameraN/A
- Human/Vehicle Analysis32-ch
- By NVRN/A
- Perimeter Protection
- By CameraN/A
- Human/Vehicle Analysis
Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition;
Up to 12 rules in total
- By NVRN/A
- ANPR
- By CameraN/A
- Vehicle AttributesN/A
- Plate AttributesN/A
- Video and Audio
- IP Video Input
64-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 2 OutputN/A
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS OutputN/A
- Audio OutputN/A
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Recording ResolutionN/A
- Live View Window DivisionN/A
- Aux Port Window DivisionN/A
- Dual-Stream RecordingN/A
- Audio CompressionN/A
- Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
- Decoding Capability16-ch@1080p (30 fps)
- Synchronous Playback64-ch
- Stream TypeVideo, Video & Audio
- Network
- APIN/A
- Compatible BrowserN/A
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection128
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access ProtocolONVIF(Version 2.5), RTSP
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
- Auxiliary Interface
- SATA8 SATA interfaces
- eSATA1 eSATA interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (full-duplex), RS-232, Keyboard
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/8
- Ctrl 12VNA
- DC 12VNA
- General
- GUI LanguageN/A
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Chassis2U chassis
- Dimension (W × D × H)442 × 459 × 92 mm (17.4″× 18″ × 3.6″)
- Weight≤ 8.7 kg (19.2 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
- Obtained CertificationCE, FCC, IC
