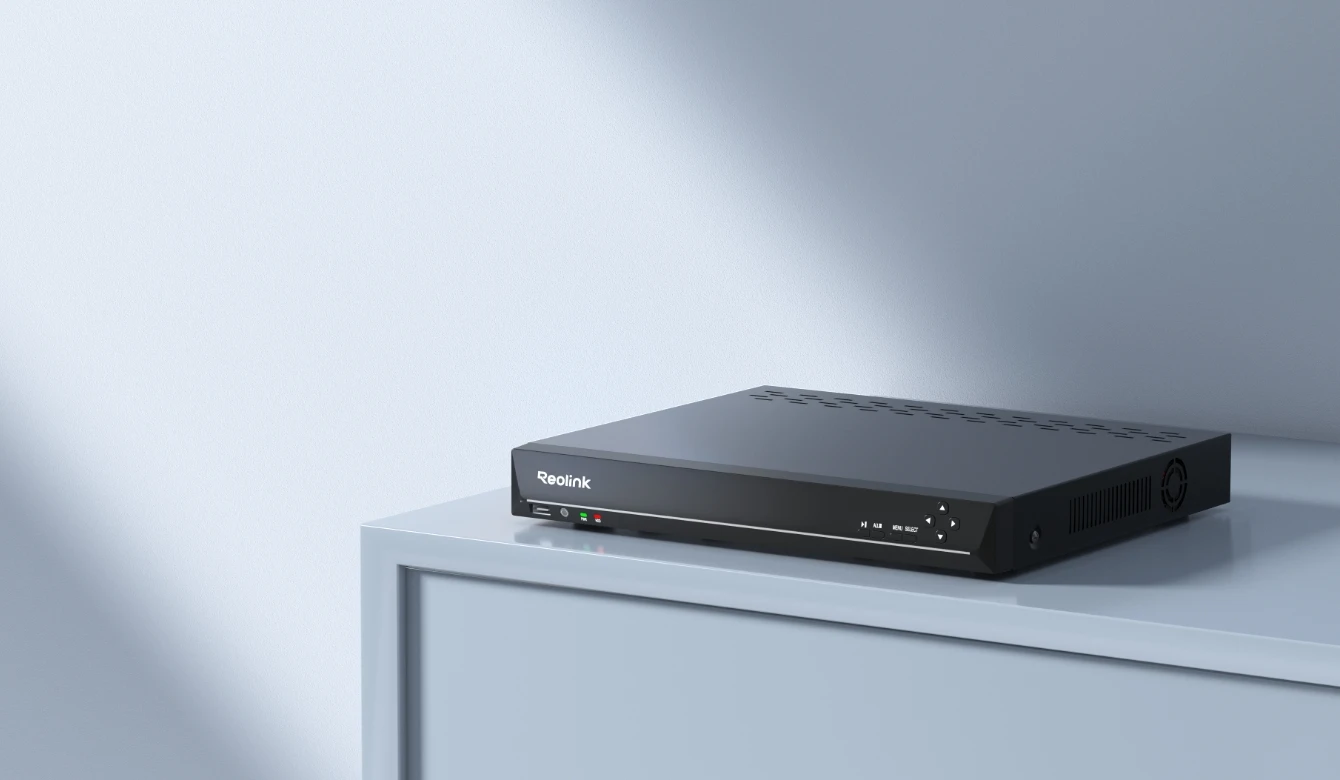

Reolink RLN16-410 NVR
RLN16-410
24-Channel* PoE NVR for 24/7 Continuous Recording
Supporting Up to 16MP
Power over Ethernet
24/7 Continuous Recording
Expandable Storage up to 16TB
WHATAPP US ON 52578244 FOR PRICE
12
People watching this product now!
Description
Hardware
Hardware
N6MB01
Video/Audio Input
IP Video Input

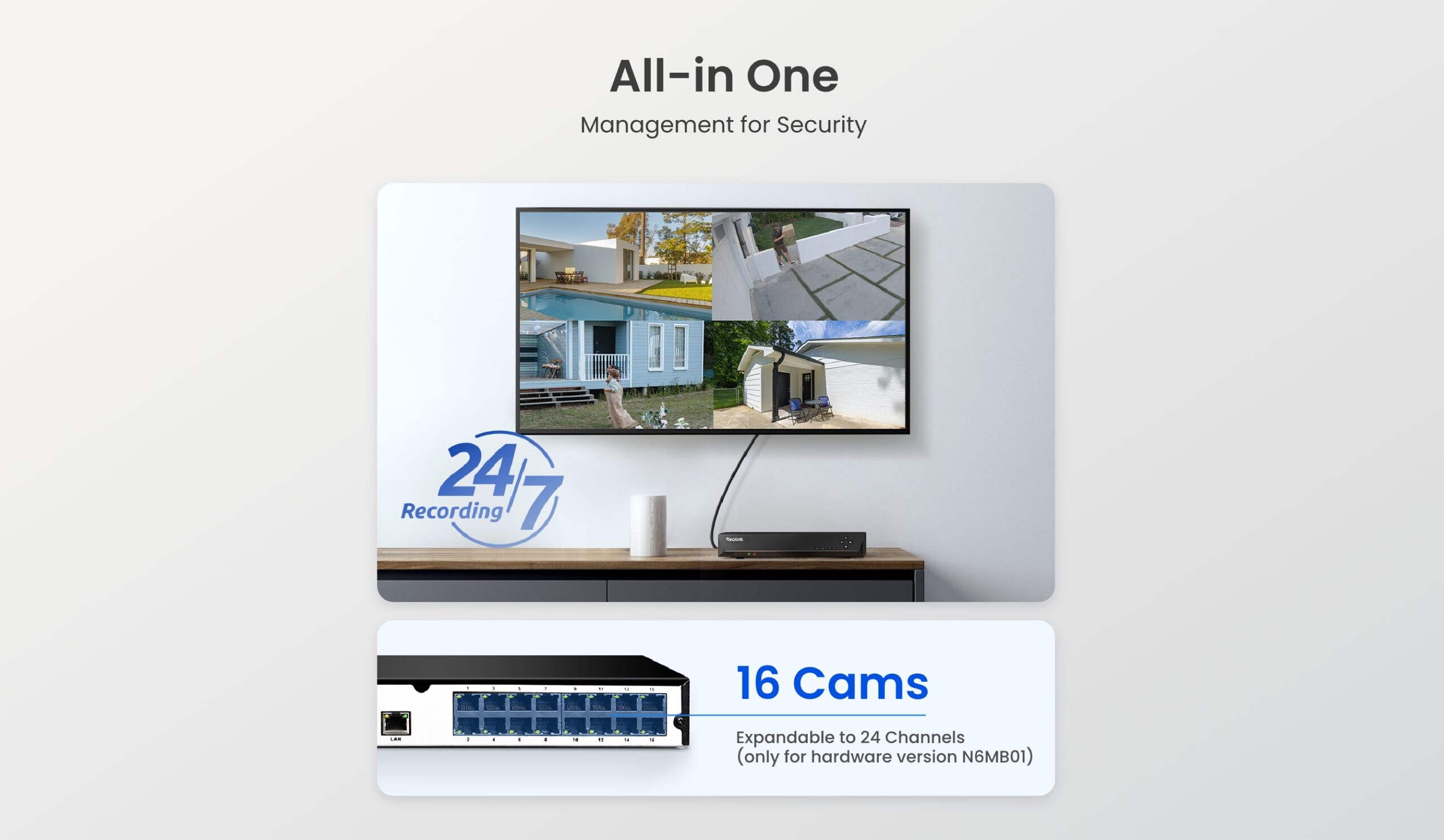

Up to 24 IP cameras (max.16 wired cameras)
Audio Input
Cameras with built-in mic
Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio Output
1-channel, RCA
Decoding
Live View/Playback Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
HDD
SATA
2 x SATA interface

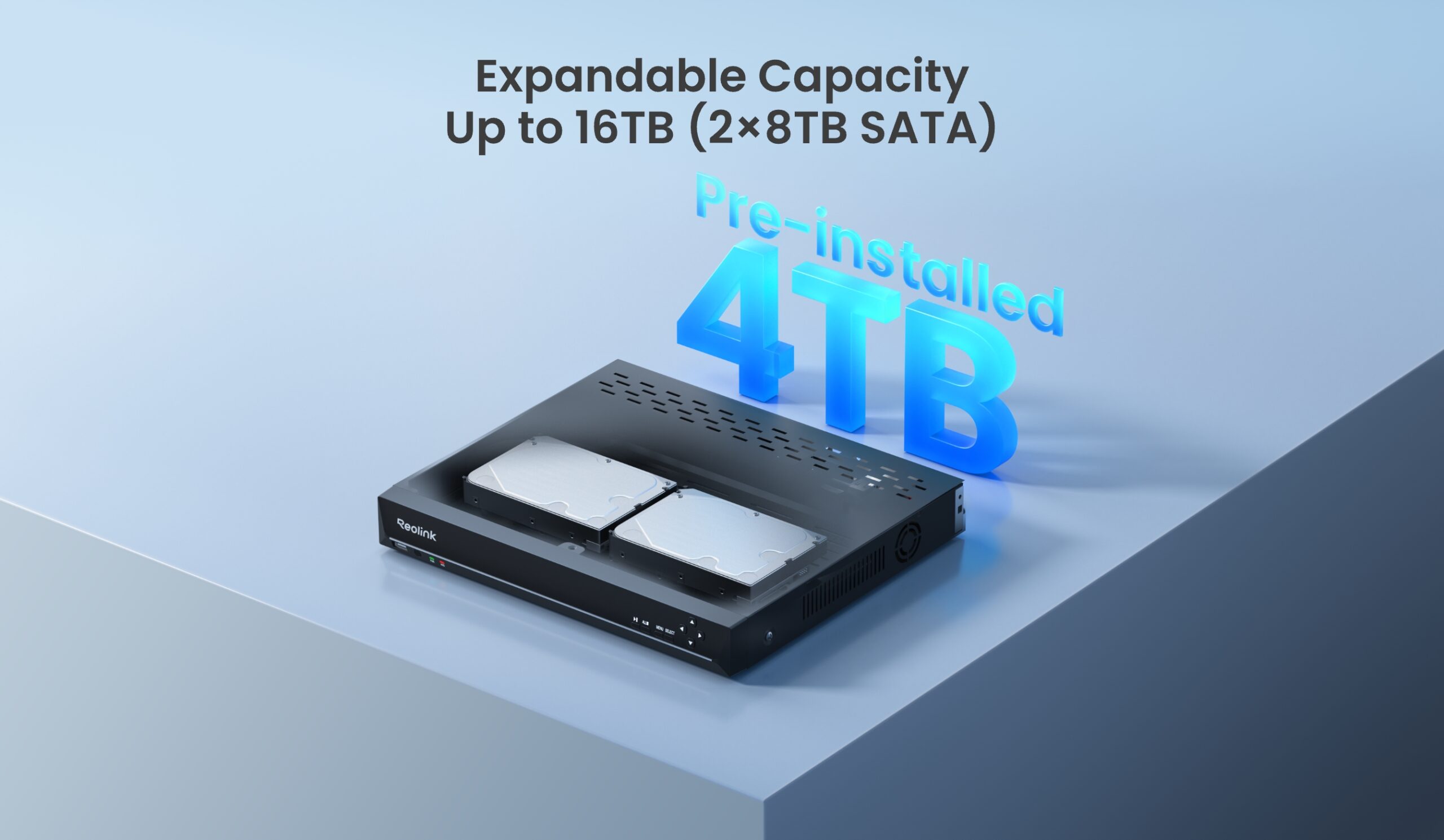

Capacity
Up to 16TB (max. 8TB capacity for each HDD)
External HDD
No
Network
Network Protocol
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported
Firefox, Chrome, Edge, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V~54V
Power Consumption
<10W (without HDD & PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions
330 × 45 × 285mm
Weight
2.4kg
Limited Warranty
2-year limited warranty.
