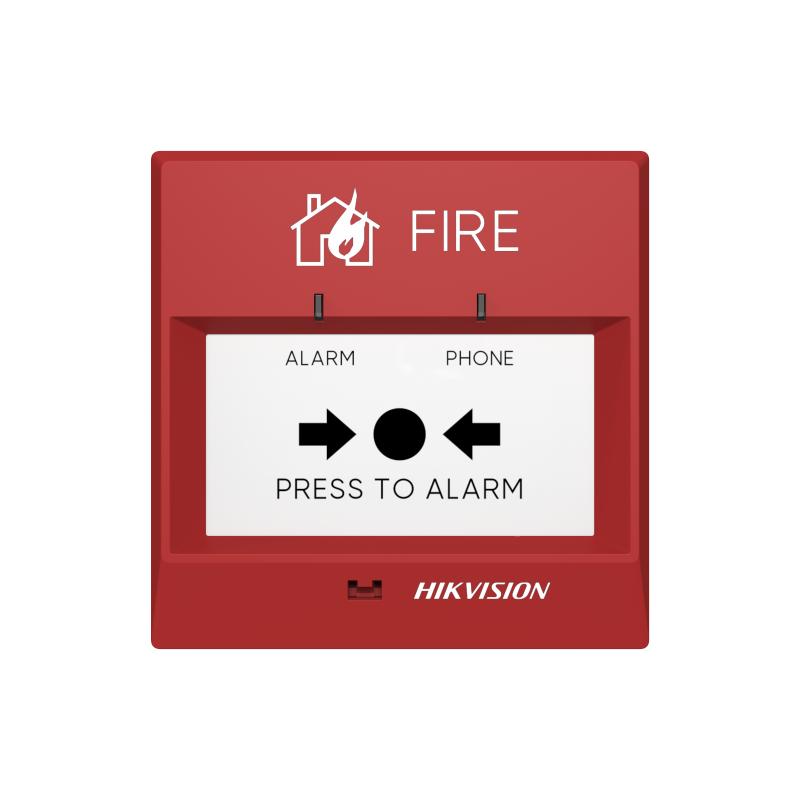

HIKVision Conventional Manual Call Point (with base)

The Hikvision HF-CMP1 is a conventional manual call point used as a field device in fire detection and alarm systems. Installed in accessible public locations such as corridors, exits, offices, hotels, schools, and commercial buildings, it enables occupants to quickly trigger the fire alarm system when a fire emergency is identified.

The device uses a two-wire connection method for simplified installation and supports a resettable operating panel that can be restored using a dedicated reset key after activation. This helps reduce replacement costs compared with traditional break-glass manual call points. The HF-CMP1 is designed for compatibility with conventional fire alarm control panels and provides dependable alarm triggering with low standby current consumption.

Its compact 86 × 86 mm housing allows easy wall mounting, while the robust construction makes it suitable for indoor fire safety applications requiring quick manual alarm activation.

Key Specifications

• Model: HF-CMP1
• Device Type: Conventional Manual Call Point
• System Type: HikFire Conventional Fire Alarm System
• Activation Method: Manual press activation
• Reset Method: Special key reset
• Wiring: Two-wire connection
• Operating Voltage: 24VDC
• Operating Voltage Range: 18–28VDC
• Monitor Current: ≤150 μA
• Alarm Current: ≤30 mA
• Cable Requirement: RVS 2 × 1.5 mm² flame-retardant cable
• Maximum Wiring Distance: Up to 500 m
• Installation: Indoor wall mounting
• Dimensions: 86 × 86 × 34 mm
• Weight: Approx. 96 g
• Features:
  • Resettable operating panel
  • Key reset mechanism
  • Two-wire installation
  • Compact design
  • Reliable manual alarm activation

Typical Applications

• Offices
• Hotels
• Schools
• Shopping areas
• Emergency exits
• Commercial and public buildings requiring manual fire alarm activation
