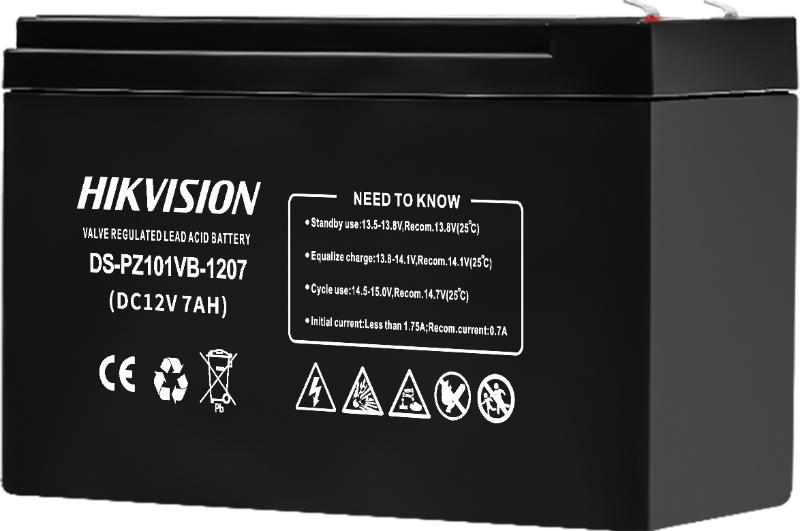

HIKVision Battery 12V 7.0Ah

The Hikvision DS-PZ101VB-1207 is a maintenance-free sealed lead-acid backup battery designed to provide continuous power support for security systems during mains power failures. It uses advanced lead-calcium multi-alloy grid technology and valve-regulated sealed construction to deliver excellent corrosion resistance, reliable discharge performance, and long service life.

With a nominal voltage of 12V and capacity of 7Ah, this battery is suitable for Hikvision intrusion alarm panels, access control systems, fire/security equipment, and other low-voltage backup power applications. It provides strong instant current discharge capability, good charge acceptance, and stable performance under varying temperature conditions.

The compact ABS flame-retardant housing allows easy installation inside control cabinets and security panels. The DS-PZ101VB-1207 is designed for standby power applications where dependable backup operation is essential.

Key Specifications

• Model: DS-PZ101VB-1207
• Battery Type: Valve-Regulated Sealed Lead-Acid (VRLA) Battery
• Application: Alarm panels, access control systems, security equipment backup power
• Nominal Voltage: 12V DC
• Capacity: 7Ah
• Terminal Type: F2 / F250
• Housing Material: ABS flame-retardant (V-1)
• Colour: Black
• Installation Type: Vertical installation
• Operating Temperature: -20°C to +50°C
• Charging Temperature: -20°C to +50°C
• Storage Temperature: -20°C to +50°C
• Humidity: ≤95% RH (non-condensing)
• Dimensions (W × H × D): 151 × 100 × 65 mm
• Weight: Approx. 2 kg
• Features:
  • High energy and power density
  • High corrosion resistance
  • Good charge acceptance
  • Strong deep-cycle discharge capability
  • Reliable high-current discharge performance

Typical Applications

• Hikvision AX Hybrid alarm systems
• Intrusion alarm control panels
• Access control backup power
• Security and automation systems requiring 12V standby power
