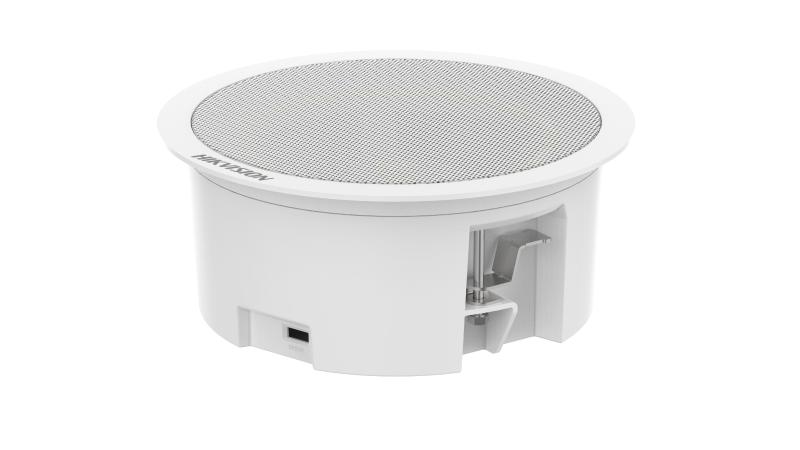

The Hikvision DS-QAZ0206G1-S is a compact ceiling-mounted secondary speaker used to expand Hikvision audio broadcast systems. It is designed to work with a primary speaker and provides reliable sound distribution for public announcements, emergency alerts, scheduled broadcasts, and audio messaging applications.
The speaker delivers 6W rated power with an 8Ω impedance, offering clear and consistent audio output across a wide frequency range of 300 Hz to 15 kHz. With a 93 dB sensitivity and up to 100 dBSPL maximum acoustic pressure, it provides effective voice coverage for indoor environments.
The DS-QAZ0206G1-S features an all-direction sound output pattern with a 130° conical coverage angle. Its ceiling installation design provides a neat appearance, making it suitable for offices, shopping areas, schools, factories, hotels, and other facilities requiring professional audio broadcasting.
The unit is built with a plastic body and metal mesh cover for durability and includes a simple fixed resistance audio input connection. A primary 6W, 8Ω speaker can connect to a maximum of one secondary speaker for system expansion.
Short Specifications
- Product Type: Ceiling Secondary Speaker
- Rated Power: 6 W
- Impedance: 8 Ω
- Sensitivity: 93 dB (1 m, 1 W)
- Maximum Sound Pressure: 100 dBSPL
- Frequency Response: 300 Hz – 15 kHz
- Signal-to-Noise Ratio: 82 dB
- Coverage Angle: 130° conical coverage
- Audio Input: Fixed resistance input ×1 (8 Ω)
- Connection: Supports 1 secondary speaker connection from primary speaker
- Material: Plastic body with metal mesh cover
- Color: White
- Installation: Ceiling mount
- Dimensions: Ø179 × 77.5 mm (cut-out hole: 160 mm)
- Weight: Approx. 0.3 kg
- Operating Temperature: 10°C to 50°C
- Humidity: <90% RH (non-condensing)
Main Features
- 6W ceiling speaker for PA systems
- Clear voice and announcement broadcasting
- Wide frequency response
- 130° sound coverage
- Compact ceiling installation design
- Supports system expansion with secondary speaker connection
- Suitable for indoor public address applications
Recommended Applications:
- Offices
- Schools
- Hotels
- Shopping malls
- Factories
- Public buildings
- Emergency announcement systems
