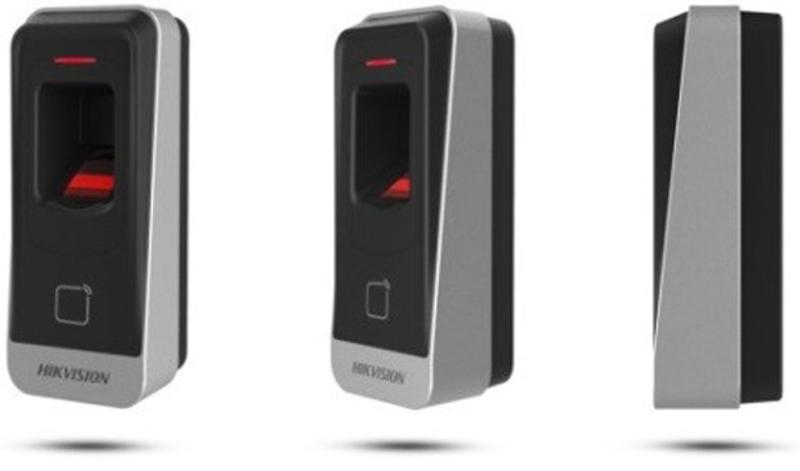

HIKVISION Fingerprint Reader
The Hikvision DS-K1201AMF is a professional fingerprint and MIFARE card reader designed for secure access control systems. It supports fingerprint authentication, MIFARE 13.56 MHz cards, and card + fingerprint verification, with RS-485 communication, tamper protection, and an IP65-rated enclosure for reliable indoor and outdoor use.
₨5,000 inc. Vat
Payment Option
Credit by Rogers Finance: ₨5,750
Apply with Rogers code - RTDL01
Credit by Rogers Finance: ₨5,750
Apply with Rogers code - RTDL01
11
People watching this product now!
Description
- A group of messy code encrypted data for the security of fingerprint storage
- Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
- Supports M1 card reading
- Card induction distance is 30 mm to 100 mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
- Built-in buzzer for status indication
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function
- Interface
- TAMPER 1
- Authentication
- Fingerprint ModuleOptical fingerprint module
- Fingerprint Comparing Mode1:1/1:N
- Card TypeM1 card
- General
- Power Supply12 VDC ± 10%
- Power Consumption≤ 1.6 W
- Working Temperature-40 °C to 70 °C (-40 °F to 158 °F)
- Working Humidity10% to 90% (no condensing)
- Dimensions62 mm × 132 mm × 44 mm (2.44″ × 5.20″ × 1.73″)
- InstallationSurface mounting
- BuzzerSupport
