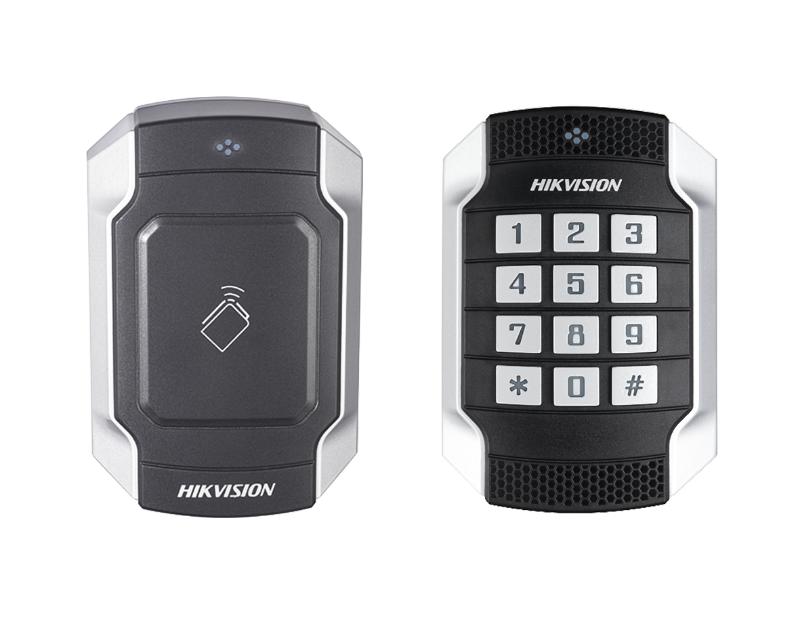

HIKVISION Outdoor Vandal Proof card reader with keypad
The Hikvision DS-K1104MK is a vandal-resistant MIFARE card reader with integrated keypad designed for secure access control applications. Supporting 13.56 MHz MIFARE cards, RS-485 and Wiegand (W26/W34) communication, and housed in an IP65/IK10-rated enclosure, it is ideal for both indoor and outdoor installations in commercial, industrial, and residential environments.
₨4,000 inc. Vat
Payment Option
Credit by Rogers Finance: ₨4,600
Apply with Rogers code - RTDL01
Credit by Rogers Finance: ₨4,600
Apply with Rogers code - RTDL01
9
People watching this product now!
Description
- M1 card reader
- PC+zinc-alloy material shell
- Built-in audible beeper
- RS-485 and Wiegand interface
- IK10
Specification
-
Authentication
-
General
-
Function
- Authentication
- Card reading frequency13.56MHz
- General
- Power supply12 VDC, ≤ 500 mA
- Power consumption≤ 2 W
- Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity10% to 90% (no condensing)
- Dimensions118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91″)
- InstallationApplied for 86 & 120 Gang Box
- Weight≤ 0.52 kg (1.1 lb)
- Keypad
DS-K1104M: No keypad
DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)
- BuzzerSupport
- Function
- ID settingsvia DIP Switch
