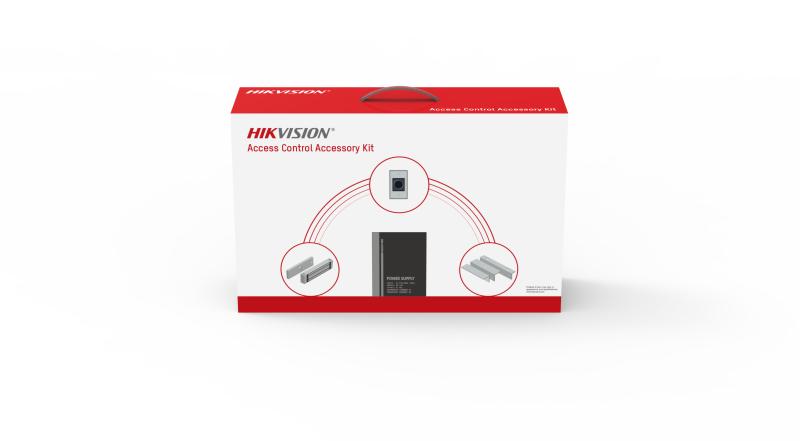

HIKVISION Accessory Kit DS-KAS-7M01
Cash Price₨4,375 inc. Vat
Payment Option
Credit by Rogers Finance: ₨5,031
Apply with Rogers code - RTDL01
Credit by Rogers Finance: ₨5,031
Apply with Rogers code - RTDL01
11
People watching this product now!
Description
- Power supply
- Input: 110 to 230 VAC
- Output: 12 VDC, 24 W
- Momentary current: 5 A
- Persistent current: 5 A
- Support backup battery charging and discharging
- Button
- Stainless steel panel
- LED indicator
- Magnetic lock
- Lock dimension: L * W * H: 250 mm * 28 mm * 48 mm (9.8″ * 1.1″ * 1.9″)
- Holding force: Max. 272 kg (600 Lbs)
- Lock bracket
- Suitable for magnetic lock
- L bracket dimensions: L * W * H: 250 mm * 46 mm *30 mm (9.8″ * 1.8″ *1.2″)
- Z bracket dimensions: L * W * H: 180 mm * 47 mm * 47 mm (7.1″ * 1.9″ * 1.9″)
Specification
-
Power Supply/General
-
Magnetic Lock/General
-
Bracket of Magnetic Lock/General
-
Exit Button/General
- Power Supply/General
- ModelDS-K7M-AW24
- Power supply
Power input: 110 to 230 VAC
Power output: 12 VDC, 24 W
- Power consumption
Power output: 24 W
Momentary current: 5 A
Persistent current: 2 A
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity＜ 95%
- Dimensions168 mm × 216 mm × 73.3 mm
- Magnetic Lock/General
- ModelDS-K4H255S
- Maximum holding forceMax. 272 kg (600 Lbs)
- Power supply12 VDC, 470 mA – 24 VDC, 235 mA
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity0 to 90% (Relative humidity)
- Dimensions
Lock Body: L×W×H: 250 mm × 28 mm × 48 mm (9.8″ × 1.1″ × 1.9″)
Armature Plate: L×W×H: 180 mm × 38 mm × 12 mm (7.1 × 1.5″ × 0.5″)”
- Door typeWooden door, glass door, and metal Door
- Shell performanceHard Anodizing electroplating operated
- Lock bodyEco-friendly Zinc electroplating operated
- Armature plateEco-friendly Zinc electroplating operated
- Bracket of Magnetic Lock/General
- ModelDS-K4H255-LZ
- Dimensions
L-bracket Dimension (L×W×H): 250×46×30mm (9.8×1.8×1.2″);
Z-bracket Dimension (L×W×H): 180×47×47mm (7.1×1.9×1.9)”
- Suitable DoorWooden door, glass door, and metal door
- Shell performanceHigh strength aluminum alloy surface sandblasting oxidation
- Exit Button/General
- ModelDS-K7P07
- Power supply12 to 24 VDC
- Working temperature-20 °C to 55 °C (-4 °F to 131 °F)
- Working humidity0 to 95% (Relative humidity)
- Dimensions115 mm × 70 mm × 16 mm (4.53″ × 2.76″ × 0.63″)
- MaterialPanel: stainless steel
