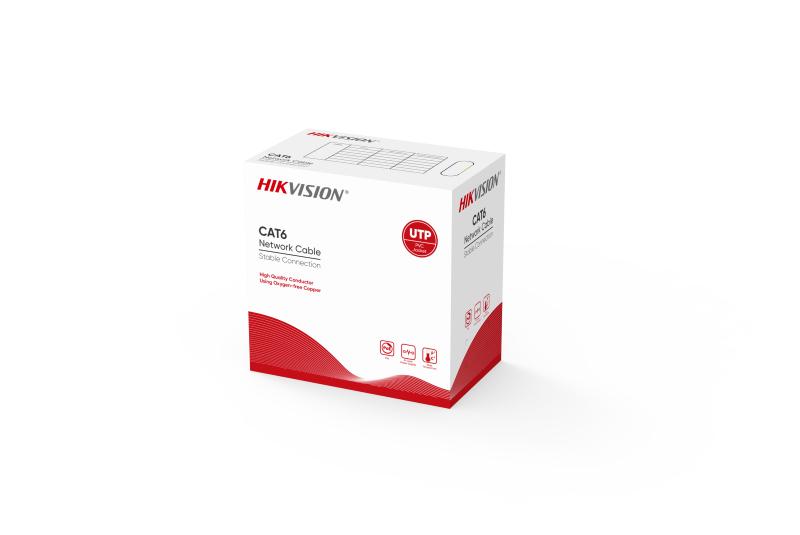

HIKVision UTP CAT 6, 305M, Grey Pure Copper
The Hikvision DS-1LN6U-G is a CAT6 U/UTP 23 AWG solid copper network cable designed for high-performance Ethernet, CCTV, and PoE installations. It features 99.95% bare copper conductors, 305 m cable length, 250 MHz bandwidth, PVC insulation, and compliance with ANSI/TIA-568-C.2, ISO/IEC 11801, and RoHS 2.0 standards. It is suitable for IP cameras, NVRs, PoE switches, and structured network cabling.
₨7,900 inc. Vat
Credit by Rogers Finance: ₨9,085
Apply with Rogers code - RTDL01
The Hikvision DS-1LN6U-G is a professional Category 6 U/UTP network cable designed for reliable data transmission in CCTV surveillance systems, enterprise networks, and structured cabling projects. It provides stable performance for Gigabit Ethernet applications, IP cameras, and PoE-powered devices.
The cable uses solid bare copper conductors with 99.95% purity, providing lower resistance, improved conductivity, and better transmission performance compared with copper-clad aluminum cables. Its 23 AWG conductor size (0.55 mm diameter) helps ensure stable signal transmission over longer cable runs.
The DS-1LN6U-G features a 4-pair unshielded twisted pair (U/UTP) design with HDPE insulation, a PVC outer sheath, rip cord, and separator structure. The cable supports frequencies from 1 MHz to 250 MHz, making it suitable for modern network and surveillance applications requiring high-speed data transfer.
Designed for professional installations, the cable is supplied in a 305-meter box and supports PoE transmission up to 60 V operating voltage. It has been tested for transmission performance, including Fluke testing compatibility, making it suitable for continuous operation in CCTV and networking environments.
Key Specifications
- Product Type: CAT6 U/UTP Network Cable
- Category: Cat.6
- Cable Type: 4 Pair U/UTP
- Conductor Material: Solid Bare Copper (99.95%)
- Conductor Size: 23 AWG
- Conductor Diameter: 0.55 ± 0.005 mm
- Insulation Material: HDPE
- Outer Jacket Material: PVC
- Cable Diameter: 6.00 ± 0.30 mm
- Color: Grey
- Frequency Range: 1–250 MHz
- Impedance:
- 100 ± 15 Ω (≤100 MHz)
- 100 ± 25 Ω (100–250 MHz)
- DC Resistance: ≤ 9.38 Ω/100 m
- Delay Skew: ≤ 45 ns/100 m
- Cable Length: 305 ± 1.5 m
- Operating Temperature: -20°C to 75°C
- Operating Voltage: 60 V
- Standards Compliance:
- ANSI/TIA-568-C.2
- ISO/IEC 11801
- RoHS 2.0
- Applications:
- IP CCTV camera cabling
- PoE camera installations
- NVR and switch connections
- Data networking
- Structured LAN cabling
- Commercial and industrial security systems
