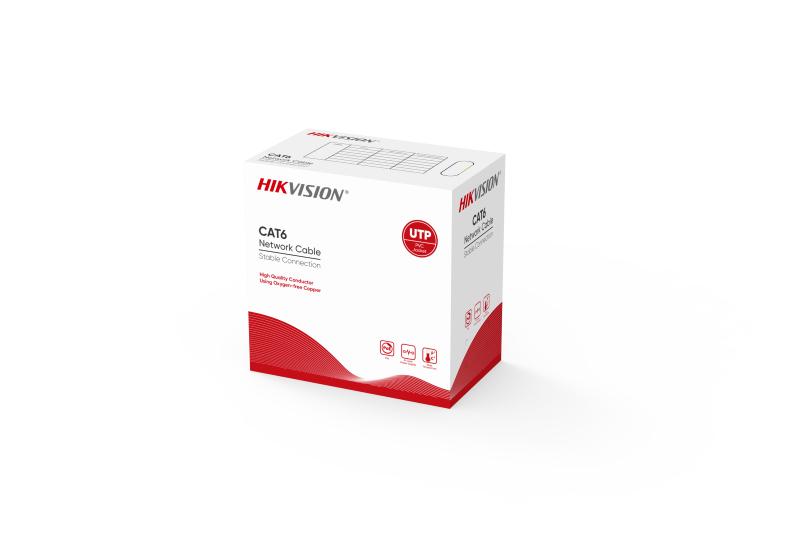

HIKVision UTP CAT 6, 305M, Orange Pure Copper
Hikvision DS-1LN6U-SC0 CAT6 U/UTP Network Cable (305m) is a high-performance solid copper LAN cable featuring 23AWG bare copper conductors, stable transmission performance up to 250 MHz, and support for PoE applications. It is suitable for Gigabit Ethernet networks, CCTV/IP surveillance systems, and commercial or residential installations.
₨7,900 inc. Vat
Credit by Rogers Finance: ₨9,085
Apply with Rogers code - RTDL01
The Hikvision DS-1LN6U-SC0 is a Category 6 unshielded twisted pair (U/UTP) cable engineered for reliable high-speed data communication. It uses 99.95% solid bare copper conductors with a 23AWG diameter, providing low resistance and improved signal transmission performance. The cable complies with ISO/IEC 11801, ANSI/TIA-568-C.2, and RoHS 2.0 standards.
With a 250 MHz transmission frequency, this cable supports Gigabit Ethernet networking and is suitable for applications such as network switches, routers, IP cameras, NVR systems, access points, and PoE-powered devices. It includes a separator and rip cord for improved cable structure and easier installation.
Specifications
| Specification | Details |
|---|---|
| Model | DS-1LN6U-SC0 |
| Brand | Hikvision |
| Cable Category | CAT6 |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Conductor Material | Solid Bare Copper (99.95%) |
| Conductor Size | 23 AWG (0.55 ± 0.005 mm) |
| Number of Pairs | 4 pairs (8 conductors) |
| Insulation Material | HDPE |
| Separator | Yes |
| Rip Cord | Yes |
| Sheath Material | PVC |
| Sheath Thickness | 0.50 ± 0.10 mm |
| Cable Diameter | 6.00 ± 0.30 mm |
| Frequency Range | 1–250 MHz |
| Impedance | 100 ± 15 Ω (≤100 MHz), 100 ± 25 Ω (100–250 MHz) |
| DC Resistance | ≤ 9.38 Ω/100 m |
| Delay Skew | ≤ 45 ns/100 m |
| Operating Voltage | 60 V |
| Cable Length | 305 ± 1.5 m (1000 ft approx.) |
| Weight | 12.3 ± 0.5 kg |
| Operating Temperature | -20°C to 75°C |
| Standard Compliance | ISO/IEC 11801, ANSI/TIA-568-C.2, RoHS 2.0 |
| Application | LAN networking, CCTV, IP cameras, PoE systems |
