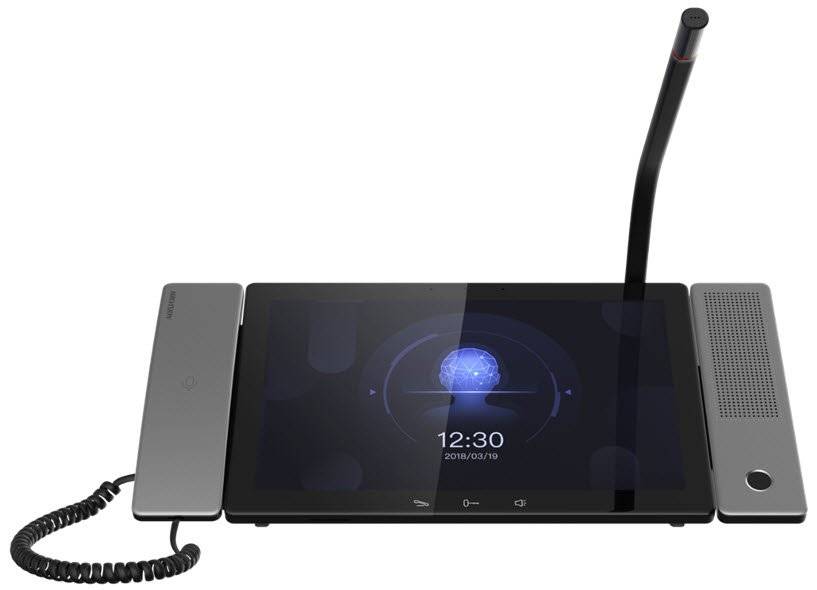

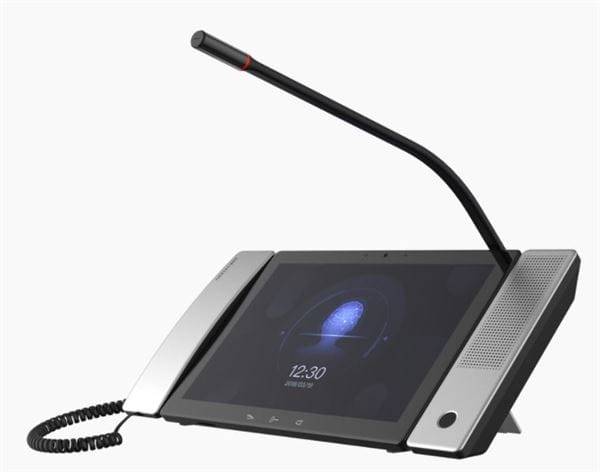

HIKVISION LCD TOUCH SCREEN DS-KM9503
The Hikvision DS-KM9503 is a 10.1-inch Android IP video intercom main station designed for centralized management of Hikvision video intercom systems. It features an IPS capacitive touchscreen, 2 MP camera, built-in SIP server, two-way audio, PoE support, HDMI output, and access control integration. It is suitable for apartment buildings, villas, offices, and security control rooms.
₨23,400 inc. Vat
Credit by Rogers Finance: ₨26,910
Apply with Rogers code - RTDL01
The Hikvision DS-KM9503 is a professional video intercom management station that provides centralized communication and monitoring between door stations, indoor stations, and other intercom devices. It is designed for security reception areas, guard rooms, property management offices, and large residential or commercial projects.
The device features a large 10.1-inch IPS touch display with 1280 × 800 resolution, providing an intuitive interface for managing calls, viewing connected devices, and controlling access functions. It runs on Android 7.1 with 2 GB RAM and 8 GB ROM for stable operation.
The DS-KM9503 includes a built-in 2 MP camera, microphone, and speaker for video communication. It supports noise suppression and echo cancellation for clear conversations and allows connection of external audio accessories such as a goose-neck microphone, speaker, and earphone.
With its integrated SIP private server, the unit can manage up to 10,000 intercom devices and connect up to 128 network cameras, making it suitable for large-scale IP intercom deployments. It supports TCP/IP, SIP, and RTSP protocols for flexible system integration.
The DS-KM9503 supports PoE (LAN1) and 12 VDC power supply, includes multiple interfaces such as USB ports, TF card slot, RS-485, alarm inputs, HDMI output, and dual network interfaces, providing flexibility for professional installations.
Key Specifications
| Feature | Specification |
|---|---|
| Product Type | Video Intercom Android Main Station |
| Operating System | Android 7.1 |
| Processor | Embedded high-performance processor |
| RAM | 2 GB |
| Storage | 8 GB ROM |
| Display | 10.1-inch IPS Capacitive Touch Screen |
| Display Resolution | 1280 × 800 |
| Camera | 2 MP |
| Camera Field of View | Horizontal 64.1°, Vertical 48.1° |
| Video Compression | H.264 |
| Audio | Two-way audio |
| Audio Features | Noise Suppression & Echo Cancellation |
| Network Protocols | TCP/IP, SIP, RTSP |
| Linked Cameras | Up to 128 network cameras |
| Linked Intercom Devices | Up to 10,000 devices |
| Network Interfaces | 2 × Ethernet |
| Alarm Inputs | 2 |
| RS-485 | 1 |
| USB Ports | 3 |
| TF Card Support | Up to 128 GB |
| Lock Control | 2 relay outputs (reserved) |
| HDMI Output | Supported |
| Power Supply | 12 VDC / Standard PoE |
| Power Consumption | ≤12 W |
| Installation | Table Mount / Wall Mount |
| Operating Environment | Indoor |
| Working Temperature | -10°C to +50°C |
| Dimensions | 292 × 166 × 31 mm |
| Weight | Approx. 1.285 kg |
Main Benefits
- Large 10.1-inch touchscreen for easy operation
- Centralized management of IP video intercom systems
- Supports up to 10,000 intercom devices
- Supports up to 128 network cameras
- Built-in SIP server for large projects
- Clear hands-free communication with echo cancellation
- PoE support for simplified installation
- HDMI output for external display applications
- Compatible with Hikvision access control and intercom solutions
Main Applications
- Apartment complexes
- Residential compounds
- Office buildings
- Security reception desks
- Property management centers
- Large-scale video intercom projects
