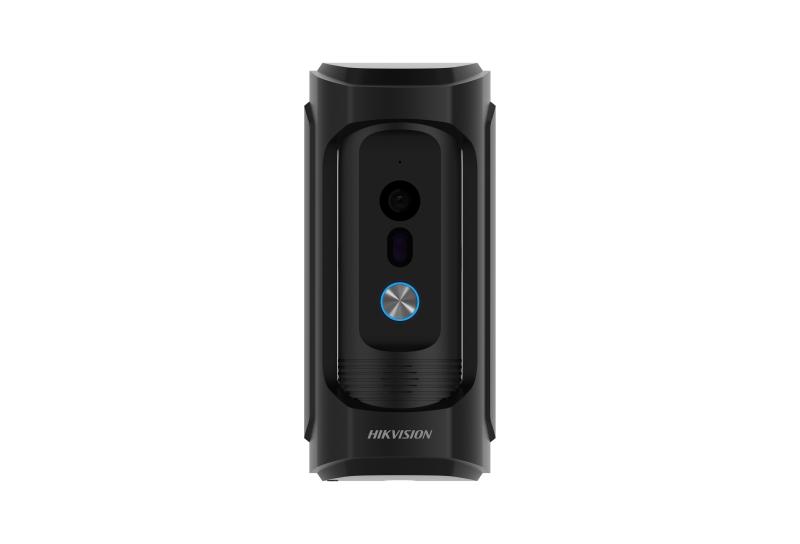

HIKVision Vandal Resistant Doorbell (Outdoor Unit for Intercom)

The Hikvision DS-KB8113-IME1(B) is a compact outdoor video doorbell/intercom station that provides secure visitor communication and access control. It features a built-in 2 MP HD camera, infrared illumination for low-light environments, and wide-angle viewing to identify visitors clearly. The device supports video calling to compatible Hikvision indoor stations and mobile applications through Hik-Connect.

Built with a vandal-resistant IK09 housing and IP65 protection, the DS-KB8113-IME1(B) is suitable for outdoor installation. It supports PoE power, remote configuration via web interface, two-way audio with noise suppression and echo cancellation, and relay control for door locking systems.

Technical Specifications

Camera

• Camera type: 2 MP HD camera
• Main stream resolution: 1920 × 1080
• Sub stream resolution: 640 × 480
• Lens: 1
• Field of view:
  • Horizontal: 95°
  • Vertical: 54°
• WDR: Supported
• IR illumination: Supported
• Video compression: H.264

Audio

• Two-way audio communication
• Built-in omnidirectional microphone
• Built-in loudspeaker
• Audio compression:
  • G.711 U
  • G.711 A
• Audio bitrate: 64 Kbps
• Noise suppression and echo cancellation
• Adjustable volume

Network

• Network interface: 1 × RJ-45
• Ethernet: 10/100 Mbps self-adaptive
• Protocols:
  • TCP/IP
  • RTSP
  • SIP
• Remote configuration via web browser

Access Control Features

• Call button: 1
• Relay output: 1
• Lock control:
  • Max. 30 VDC / 2 A
• Linked indoor stations: 1
• Sub door stations: Up to 16

Hardware

• Operating system: Embedded Linux
• Processor: Embedded MCU processor
• RAM: 256 MB
• ROM: 32 MB

Power Supply

• IEEE 802.3af standard PoE
• 12 VDC power input
• Power consumption: <10 W

Protection & Installation

• Protection rating: IP65
• Impact resistance: IK09
• Installation: Surface mounting
• Operating temperature: -30°C to +50°C
• Dimensions: 161.85 × 74.13 × 53.2 mm

Main Features

• 2 MP HD video doorbell camera
• Vandal-resistant outdoor design
• IR night vision
• Two-way audio communication
• Remote door unlocking
• PoE powered installation
• Hik-Connect mobile app support
• Noise reduction and echo cancellation
• Integration with Hikvision indoor stations and access control systems

Recommended Applications:
Residential villas, apartment entrances, offices, gated communities, and small commercial access control systems.
