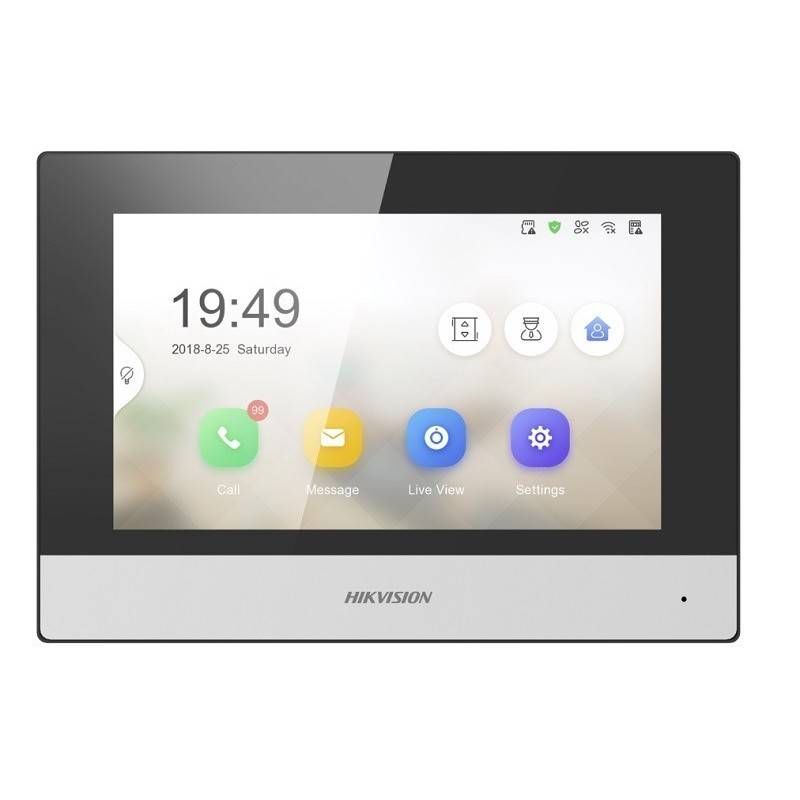

HIKVISION VIDEO INTERCOM DS-KH6320-WTE1
The Hikvision DS-KH6320-WTE1 is a 7-inch IP video intercom indoor station designed for Hikvision IP door phone systems. It features a 1024 × 600 capacitive touch screen, Wi-Fi connectivity, two-way audio with noise suppression and echo cancellation, alarm interfaces, and support for connection with door stations, indoor extensions, and network cameras. It is ideal for apartments, villas, offices, and residential security systems.
₨5,400 inc. Vat
Credit by Rogers Finance: ₨6,210
Apply with Rogers code - RTDL01
The Hikvision DS-KH6320-WTE1 is a professional KH6 Series IP indoor station that provides video intercom communication, visitor management, and security monitoring functions. It is designed to work with Hikvision IP video door stations, allowing users to answer calls, view visitors, communicate through two-way audio, and control connected door locks.
The device features a 7-inch color TFT capacitive touch display with 1024 × 600 resolution, providing a clear and user-friendly interface for managing video calls, alarms, and connected devices. It uses an embedded high-performance processor with a Linux operating system for stable operation.
The DS-KH6320-WTE1 supports TCP/IP, SIP, and RTSP protocols, allowing integration with Hikvision video intercom systems and network cameras. Built-in microphone and speaker provide hands-free communication with noise reduction and echo cancellation for improved audio clarity.
For system expansion, the indoor station supports connection with up to 17 doorphones, 16 indoor extensions, and 16 network cameras. It includes 8 alarm inputs, 2 alarm outputs, RS-485 communication, and a TF card slot for event and image storage.
The unit supports 2.4 GHz Wi-Fi and wired Ethernet connection, providing flexible installation options for residential and commercial video intercom projects.
Key Specifications
| Feature | Specification |
|---|---|
| Product Type | IP Video Intercom Indoor Station |
| Series | Hikvision KH6 Series |
| Display Size | 7-inch Color TFT Screen |
| Touch Type | Capacitive Touch Screen |
| Resolution | 1024 × 600 |
| Operating System | Linux |
| Processor | Embedded High-Performance Processor |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Speaker |
| Audio Features | Noise Suppression & Echo Cancellation |
| Audio Compression | G.711U / G.711A / G.722.1 |
| Network Interface | 1 × RJ-45 10/100 Mbps |
| Wi-Fi | 2.4 GHz IEEE 802.11 b/g/n |
| Network Protocols | TCP/IP, SIP, RTSP |
| Linked Door Stations | Up to 17 |
| Linked Indoor Extensions | Up to 16 |
| Linked Network Cameras | Up to 16 |
| Alarm Inputs | 8 |
| Alarm Outputs | 2 |
| RS-485 | 1 Port |
| TF Card Support | Up to 32 GB (SD 2.0 or lower) |
| Power Supply | 12 VDC / PoE |
| Power Consumption | ≤ 6 W |
| Installation | Surface Mount |
| Working Temperature | -10°C to +55°C |
| Working Humidity | 10%–90% |
| Dimensions | 200 × 140 × 15.1 mm |
| Application | Indoor Video Intercom Systems |
Main Benefits
- 7-inch touchscreen for easy operation
- Supports video calls and remote door unlocking
- Wi-Fi and Ethernet connectivity
- Clear hands-free audio communication
- Supports multiple door stations and cameras
- Built-in alarm management functions
- Compatible with Hikvision IP intercom solutions
- Suitable for apartments, villas, offices, and residential buildings
Main Applications
- Apartment video intercom systems
- Villa entrance communication
- Office reception security
- Residential buildings
- Smart access control projects
- Integrated Hikvision IP intercom installations
