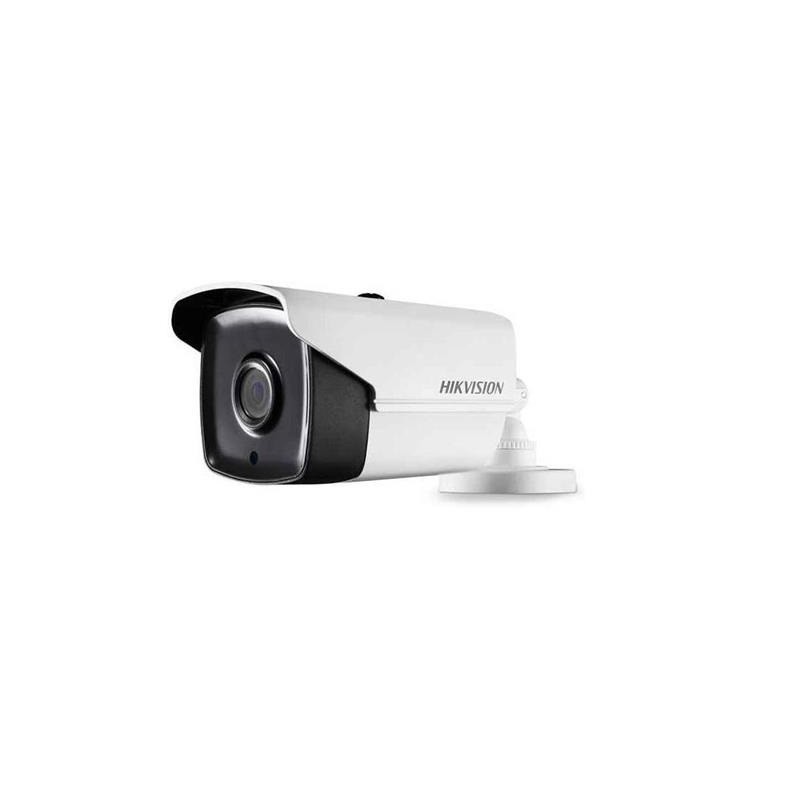

DS-2CE16H0T-ITF
Specifications :-
CAMERA
– Image Sensor : 5MP CMOS Image Sensor
– Max. Resolution : 2560 (H) x 1944 (V)
– Min. Illumination : Colour 0.01 Lux @ F1.2, AGN on / 0 Lux with IR
– Day & Night : IR cut filter
– Angle Adjustment : Pan 0° – 360° / Tilt 0° – 180° / Rotation 0° – 360°
LENS
– Lens Type : 3.6mm
– Focal Length (Field of View) : 80.1° (3.6mm)
– Lens Mount : M12
– Image Settings : Brightness / Sharpness / DNR / Mirror / Smart IR
– Frame Rate : PAL 5MP @ 20fps / NTSC 5MP @ 20fps or 1080p @ 30fps
– Day/Night Mode : Auto / Colour / Black & White
– Wide Dynamic Range (WDR) : DWDR
– Image Enhancement : BLC
– White Balance : ATW / MWB
– Automatic Gain Control (AGC) : Low / Middle / High
INTERFACE
– Video Output : Switchable TVI / AHD / CVI / CVBS
GENERAL
– Material : Metal
– Language : English
– Communication : Up the coax
– Protocol : HIKVISION-C (TVI output)
– Power Supply : 12V DC ±25%
– Consumption : max. 4.3W
– IR Range : up to 20m
– Ingress Protection code : IP67
– Colour : available in White + Black Front
– 2 Years Warranty
