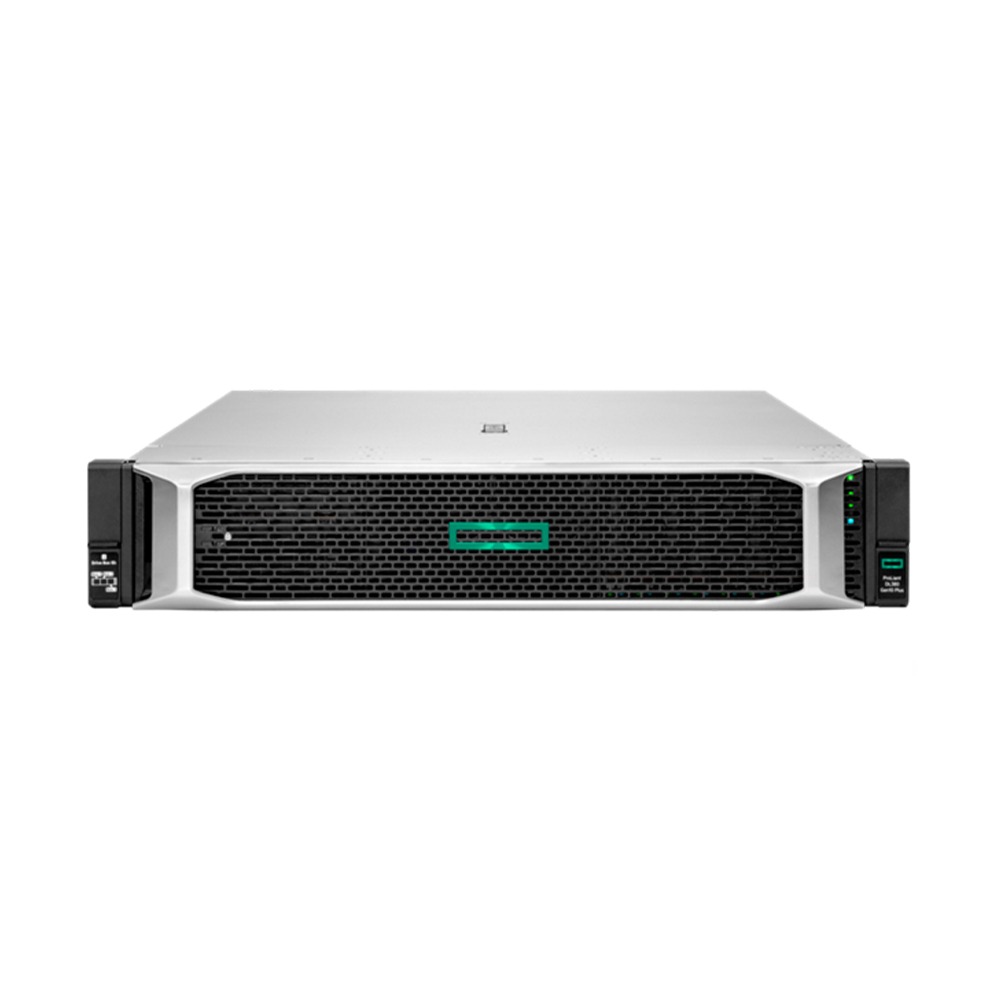

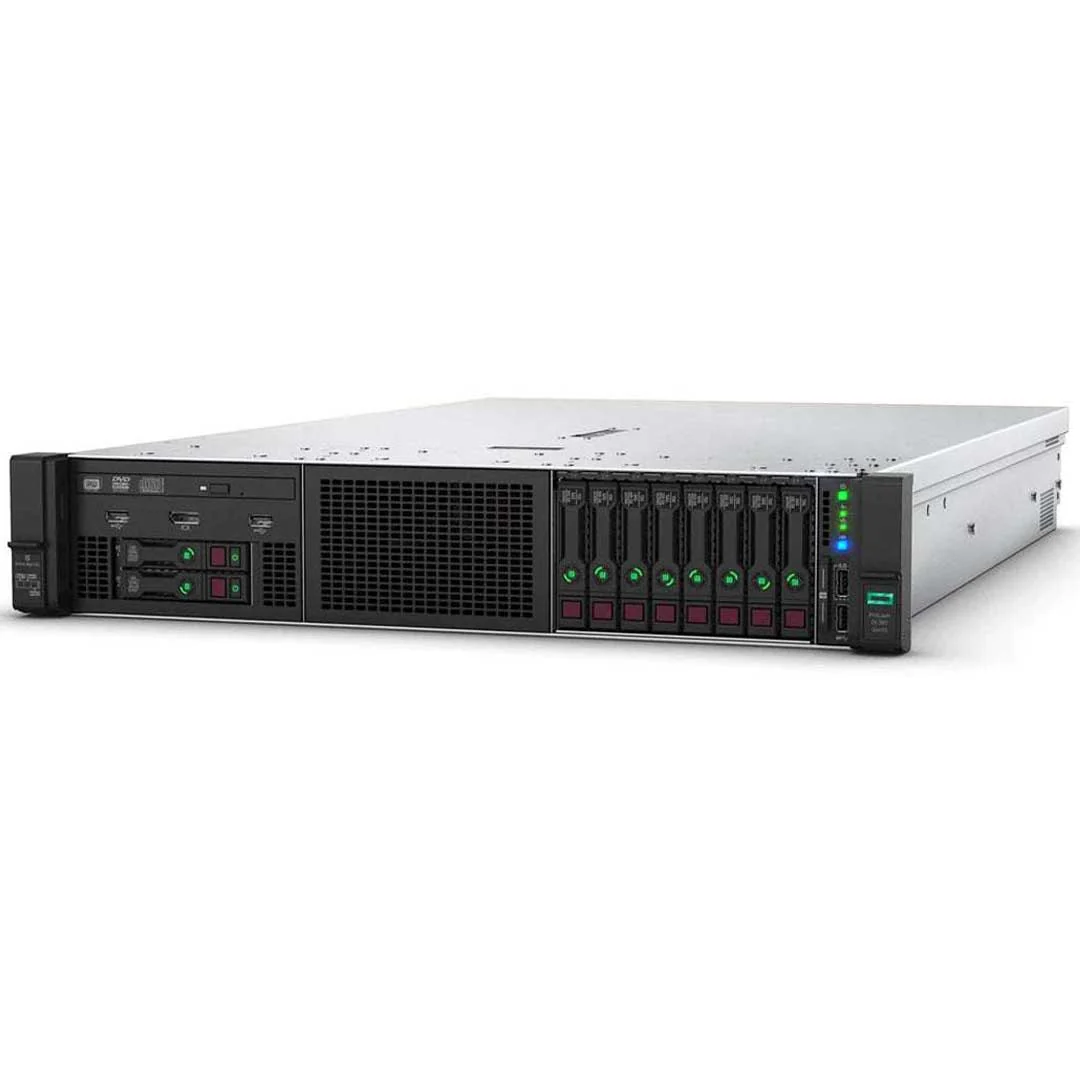

HPE ProLiant DL380 Gen10 Plus 4314

Detailed product descriptionHPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4314 processor, 1x 32 GB dual rank memory, Broadcom MegaRAID MR416i-p x16 Lanes 4 GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, six maximum performance fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty

Processor

Processor nameIntel® Xeon® Silver 4314 (16 core, 2.40 GHz, 24 MB L3, 135W)

Processor number1 processor included

Processor core available16 core

Processor speed2.40 GHz

Processor cache24 MB L3

Server Memory

Memory typeHPE DDR4 Smart Memory

Included memory32 GB (1×32 GB, 3200 MT/s)

NVDIMM typeOptional: Intel® Optane™ Persistent Memory for HPE

NVDIMM capacityOptional: 128 GB – 512 GB

Server Cooling

System fan features6x Maximum Performance Fans

Server Expansions

Expansion slots8, for detailed descriptions refer to the QuickSpecs

Server Form Factor

Form factor2U Rack

Server Controllers

Network controllerBroadcom BCM 5719 1Gb 4p BASE-T Adpter

Storage controllerHPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller

Server Drives

Included hard drivesNone ship standard, 8 SFF supported

Optical drive typeOptional DVD-ROM Optional via Universal Media Bay External support only

Server Power

Power supply type1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Management Software

Infrastructure managementHPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses)

Security

SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Weights and Dimensions

Weight28.77 kg maximum (63.43 lbs. maximum)

Dimensions8.75 x 44.54 x 71. cm (3.44 x 17.54 x 28 in)
