Description
| Interface | Mini USB 2.0 |
|---|---|
| Button | WPS Push Button/Software |
| Dimensions ( W x D x H ) | 3.5 x 2.7 x 0.7 in. (90 x 68 x 16.8mm) |

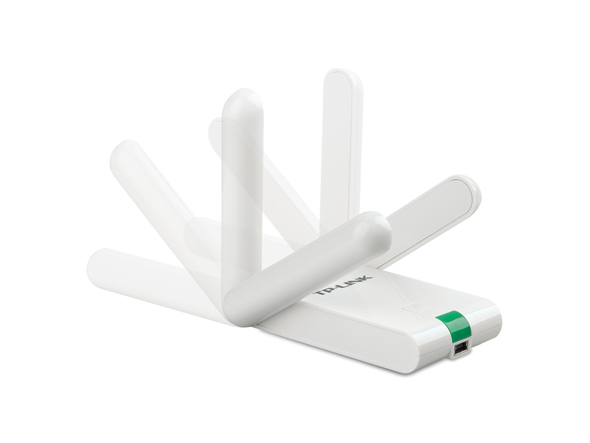

| Antenna | Dual Omni Directional |
| Antenna Gain | 3dBi |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Frequency | 2.400-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Advanced Features | WMM |
| Transmission Power | <20dBm(EIRP) |
| Certification | CE, FCC, RoHS |
|---|---|
| Package Content | Wireless Adapter TL-WN822N Resource CD Quick Installation Guide 1.5m USB Cable |
| System Requirements | Windows 10/8.1/8/7/XP Mac OS X Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
