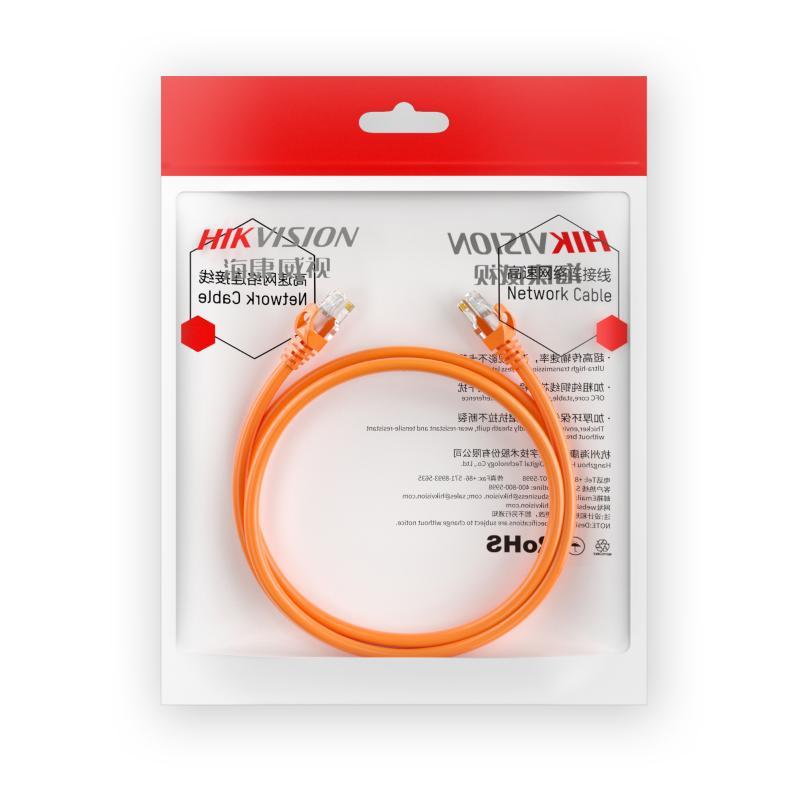

HIKVISION DS-1NP6UEC0 CAT6，U/UTP，24AWG，CU (2m)
Cash Price₨250 inc. Vat
Payment Option
Credit by Rogers Finance: ₨288
Apply with Rogers code - RTDL01
Credit by Rogers Finance: ₨288
Apply with Rogers code - RTDL01
8
People watching this product now!
Description
- Stable electrical performance, compliant with TIA-568.2-D,ISO/IEC 11801.
- Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Gold plated plug, less resistance, less Insertion loss.
- Excellent performance in the Fluke 100-meter channel test.
- Compliant with RoHS 2.0.
- Suitable for 10BASE-T, 100BASE-TX Fast Ethernet, and 1000BASE-T /1000BASE-TX (Gigabit Ethernet).
Specification
- Patch cord/General
- CategoryCat 6
- length0.5,1,2,3,5,10m
- Operating Voltage57V
- Patch cord/Conductor
- Conductor MaterialBare Copper (99.95%)
- Conductor Diameter7*0.2mm 24AWG
- Patch cord/Insulation
- Insulation MaterialHDPE
- Patch cord/Sheath
- Sheath MaterialPVC
- Sheath Thickness0.50 ± 0.05mm
- Sheath Diameter5.8±0.20 mm
- Sheath ColorOrange/Gray
- Patch cord/Plug
- Plug MaterialPC UL94V-0
- Gold Plating30u inch
- Patch cord/Electrical Characteristic
- Impedance100±15 Ω
- DC Resistance≤ 9.4 Ω/100 m
