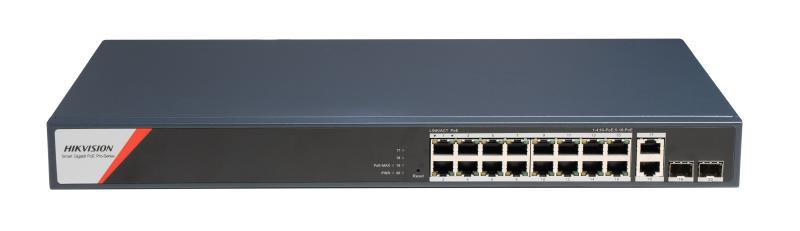

HIKVision 16 Port Gigabit Smart POE Switch + 2 RJ 45 Uplinks + 2 SFP Uplinks
Hikvision DS-3E1520HP-SI-16P2T2F is a Layer 2 Smart Managed Gigabit PoE switch designed for professional IP surveillance networks. It features 16 × Gigabit PoE ports, 2 × Gigabit RJ45 uplink ports, and 2 × Gigabit SFP fiber uplink ports with a 230W PoE power budget. It supports 802.3bt Hi-PoE up to 90W per port, making it suitable for PTZ cameras and high-power PoE devices.
₨14,200 inc. Vat
Credit by Rogers Finance: ₨16,330
Apply with Rogers code - RTDL01
The Hikvision DS-3E1520HP-SI-16P2T2F is a smart managed PoE switch built for large-scale CCTV, security, and enterprise networking applications. It combines high-speed Gigabit connectivity with intelligent management features, allowing easier deployment, monitoring, and maintenance of surveillance networks.
The switch provides 16 Gigabit PoE RJ45 ports for connecting IP cameras and PoE devices, along with 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP fiber ports for network expansion and backbone connections. Ports 1–4 support Hi-PoE up to 90W per port, while the remaining PoE ports support standard PoE output up to 30W per port. The total PoE power budget is 230W.
It includes advanced network management functions such as 802.1Q VLAN, STP/RSTP loop prevention, storm control, SNMP, QoS, DHCP snooping, cable fault detection, and PoE watchdog, providing reliable operation for professional surveillance installations.
Specifications
| Specification | Details |
|---|---|
| Model | DS-3E1520HP-SI-16P2T2F |
| Brand | Hikvision |
| Product Type | Smart Managed Gigabit PoE Switch |
| Layer | Layer 2 |
| PoE Ports | 16 × Gigabit PoE RJ45 ports |
| RJ45 Uplink Ports | 2 × Gigabit RJ45 ports |
| Fiber Uplink Ports | 2 × Gigabit SFP ports |
| Ethernet Speed | 10/100/1000 Mbps |
| PoE Standards | IEEE 802.3af / 802.3at / 802.3bt |
| Hi-PoE Ports | Ports 1–4 |
| Hi-PoE Output | Up to 90W per port |
| Standard PoE Ports | Ports 5–16 |
| Standard PoE Output | Up to 30W per port |
| Total PoE Budget | 230W |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | Approx. 29.8 Mpps |
| MAC Address Table | 8K |
| Long Range Transmission | Up to 300m |
| Surge Protection | 6kV |
| VLAN | IEEE 802.1Q VLAN |
| Management Features | SNMP, QoS, DHCP Snooping, STP/RSTP |
| Security Features | Port security, IP/MAC binding |
| PoE Features | PoE watchdog, PoE management |
| Housing | Metal |
| Installation | Rack/Desktop mounting |
| Power Supply | 100–240V AC |
| Maximum Power Consumption | Approx. 250W |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 44 × 220.8 mm |
| Weight | Approx. 2.735 kg |
