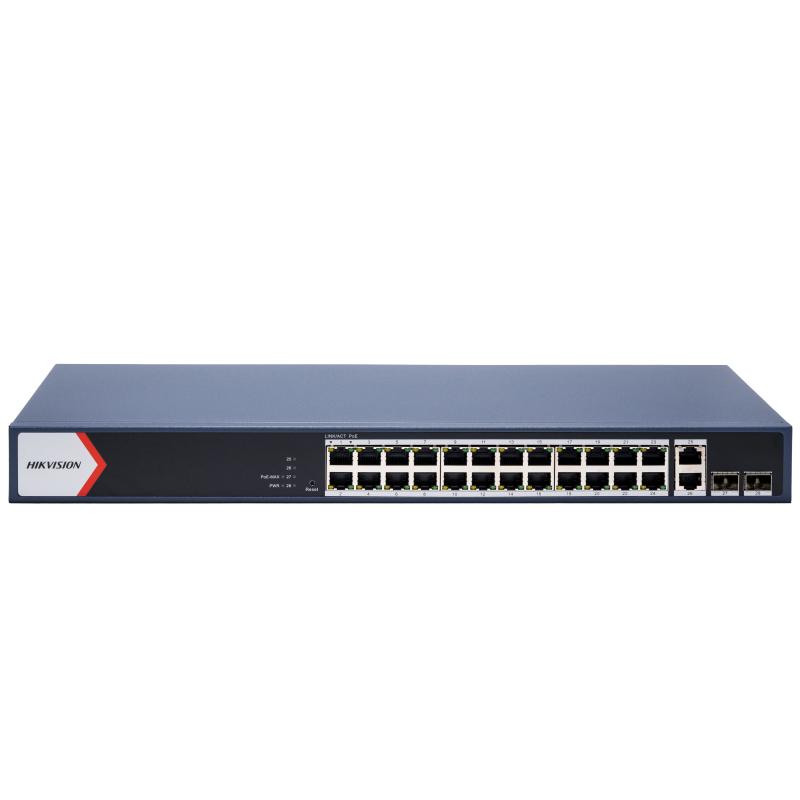

HIKVision 24 Gigabit POE ports Managed + 2 Uplink RJ45 + 2 Uplink SFP
Hikvision DS-3E1528P-EI/M is a Layer 2 Smart Managed Gigabit PoE switch designed for professional IP surveillance and enterprise networks. It provides 24 × Gigabit PoE RJ45 ports, 2 × Gigabit RJ45 uplink ports, and 2 × Gigabit SFP fiber uplink ports with a 230W total PoE power budget. It supports intelligent management, PoE watchdog, VLAN, QoS, and long-distance PoE transmission up to 300m.
₨11,900 inc. Vat
Credit by Rogers Finance: ₨13,685
Apply with Rogers code - RTDL01
The Hikvision DS-3E1528P-EI/M is a high-performance 28-port Smart Managed PoE switch developed for large CCTV installations, security networks, and business infrastructure. It combines Gigabit copper connectivity with fiber uplink capability, allowing flexible deployment for IP cameras, NVR systems, and network backbone connections.
The switch includes 24 Gigabit PoE RJ45 ports for powering IP cameras and PoE devices, along with 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP fiber ports for network expansion. Each PoE port supports up to 30W output, with a total PoE power budget of 230W.
It supports smart management features including cloud management, network topology visualization, remote troubleshooting, VLAN, STP/RSTP loop prevention, QoS, link aggregation, PoE watchdog, cable diagnostics, and 6kV surge protection, making it suitable for reliable surveillance deployments.
Specifications
| Specification | Details |
|---|---|
| Model | DS-3E1528P-EI/M |
| Brand | Hikvision |
| Product Type | Smart Managed Gigabit PoE Switch |
| Layer | Layer 2 |
| Total Ports | 28 Ports |
| PoE Ports | 24 × Gigabit PoE RJ45 |
| RJ45 Uplink Ports | 2 × Gigabit RJ45 |
| Fiber Uplink Ports | 2 × Gigabit SFP |
| Ethernet Speed | 10/100/1000 Mbps |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output per Port | 30W |
| Total PoE Power Budget | 230W |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 50.59 Mpps |
| MAC Address Table | 8K |
| Long Range PoE Transmission | Up to 300m |
| Surge Protection | 6kV |
| VLAN Support | IEEE 802.1Q VLAN |
| Loop Prevention | STP / RSTP |
| Management Features | Cloud management, QoS, SNMP, Link Aggregation, Port Isolation |
| PoE Features | PoE Watchdog, PoE management |
| Cable Diagnostics | Supported |
| Housing | Metal |
| Installation | Rack mount |
| Power Supply | 100–240V AC |
| Maximum Power Consumption | Approx. 250W |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 44 × 220.8 mm |
| Weight | Approx. 3.3 kg |
