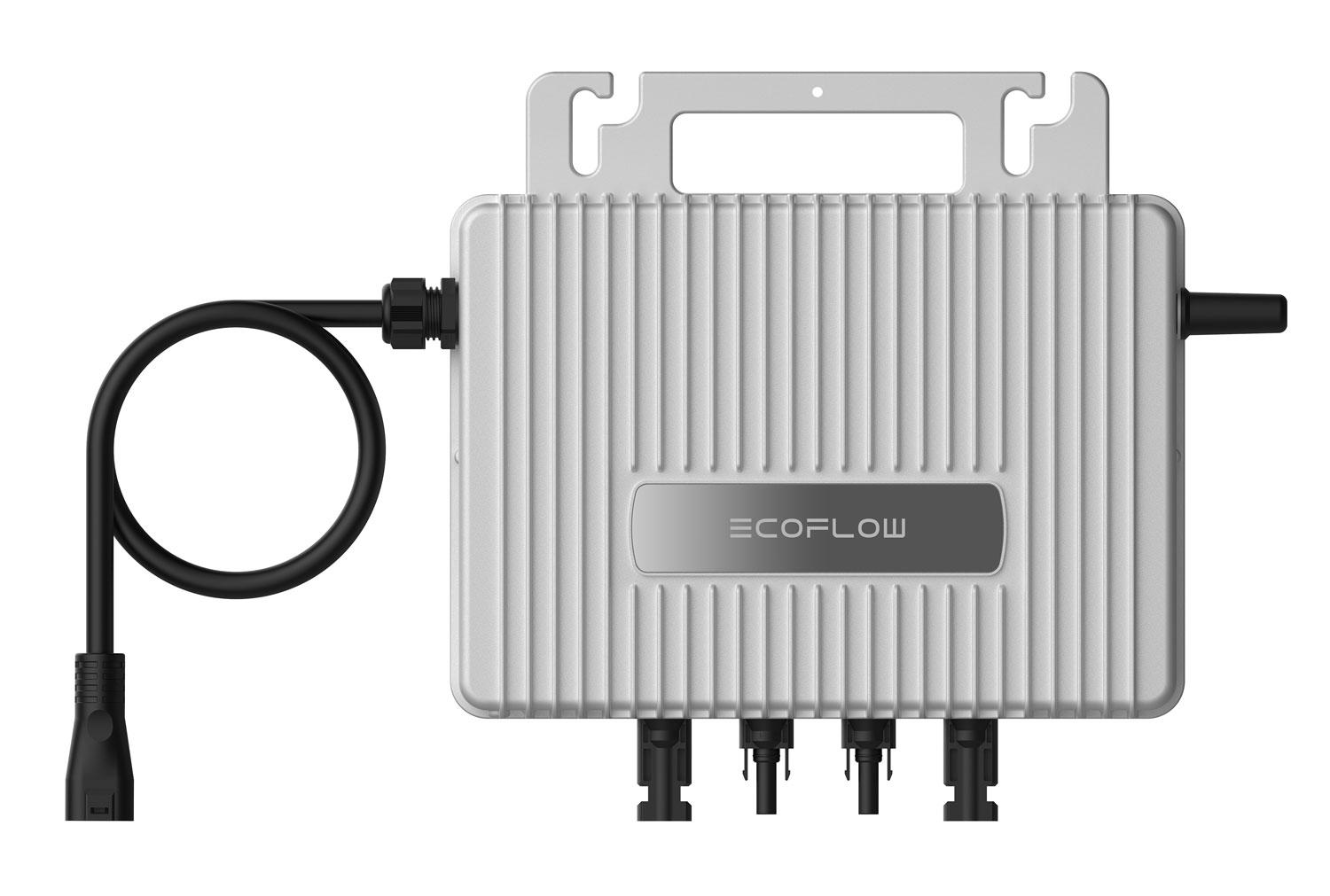

EcoFlow STREAM Microinverter 800W
The EcoFlow STREAM Microinverter 800W is a plug-and-play solar microinverter designed to convert DC power from solar panels into AC electricity for household use. It features 2 MPPT channels, supports up to 1,200W of solar input, and delivers up to 800VA grid output. Its IP67 rating makes it suitable for outdoor solar installations.
Stream Micro Inverter 800W
Input
MPPT Channels: 2
Max Input Power per Channel: 600W
Max Input Voltage: 65V DC
Start-up Voltage: 20V
MPPT Voltage Range: 16-60V DC
Max Current per MPPT: 16A
Short-Circuit Current per MPPT 16A
Recommended Accessory
Output
Rated Grid Output Power: 800VA
Max Grid Output Current: 3.48A
Rated Voltage: 230VAC
Voltage Range: 183-276VAC
Frequency Range: 45-55 Hz / 55-65 Hz
₨17,000 inc. Vat
Credit by Rogers Finance: ₨19,550
Apply with Rogers code - RTDL01
Specifications
| Specification | Details |
|---|---|
| Brand | EcoFlow |
| Product | STREAM Microinverter 800W |
| Rated Grid Output | 800VA |
| MPPT Channels | 2 |
| Max Input Power / Channel | 600W |
| Maximum Input Voltage | 65V DC |
| Start-up Voltage | 20V DC |
| MPPT Voltage Range | 16–60V DC |
| Max Current / MPPT | 16A |
| Max Grid Output Current | 3.48A |
| Rated AC Voltage | 230V AC |
| AC Voltage Range | 183–276V AC |
| Frequency | 45–55Hz / 55–65Hz |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to 65°C |
| Dimensions | 252 × 180 × 35mm |
| Weight | 3.2kg |
| Warranty | 10 years |
EcoFlow specifies 2 MPPT channels with up to 600W input per channel and 800VA rated grid output for the 230V version.
Key Features
- ☀️ Up to 1,200W solar input capability
- ⚡ 800W/800VA AC grid output
- 🔄 2 independent MPPT channels
- 🔌 Plug-and-play installation
- 💧 IP67 weather-resistant design
- 📱 Smart monitoring through the EcoFlow ecosystem
- 🌤️ Optimized for solar generation even in variable/low-light conditions
- 🔗 Designed to work with EcoFlow STREAM home battery systems
- 🛡️ 10-year warranty
