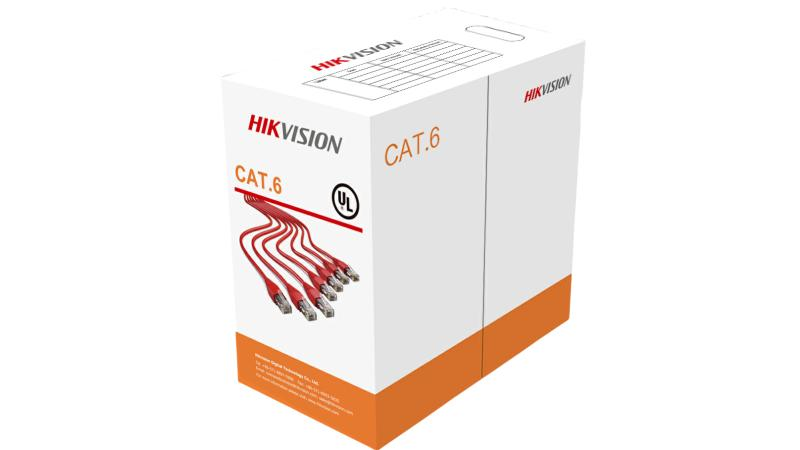

HIKVISION UTP CAT 6, 305M, Orange Pure Copper, Fire Retardant
Hikvision DS-1LN6-UU is a CAT6 U/UTP solid copper network cable designed for high-speed Ethernet, IP surveillance, and PoE applications. It features 23AWG 99.95% bare copper conductors, 305 m cable length, and reliable transmission performance for CCTV and structured LAN installations.
₨9,350 inc. Vat
Payment Option
Credit by Rogers Finance: ₨10,753
Apply with Rogers code - RTDL01
Credit by Rogers Finance: ₨10,753
Apply with Rogers code - RTDL01
8
People watching this product now!
Description
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.565mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
- General
- Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
- PackingWooden Tray & Carton
- Carton DimensionPer request
- Packing Length305±1.5m
- Rip-CordYes
- Drain WireNo
- Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
- Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,
- Conductor
- MaterialSolid-Bare Copper,Content 99.95%,
- Nom.O.D.(Mm)0.565±0.005
- Insulation
- MaterialHDPE
- Diameter1.02±0.05mm
- Sheath
- Thickness0.55±0.05 mm
- External O.D.6.2±0.4 mm
- SurfaceClean,Frap,Satiation
- MaterialPVC(complies RoHS),CM
- ColorOrange RAL2003
- Surface Printing
- Letter Height3.0±0.3mm
- ColorBlack
- Print Error & Space≤±0.5%，1m
