Description

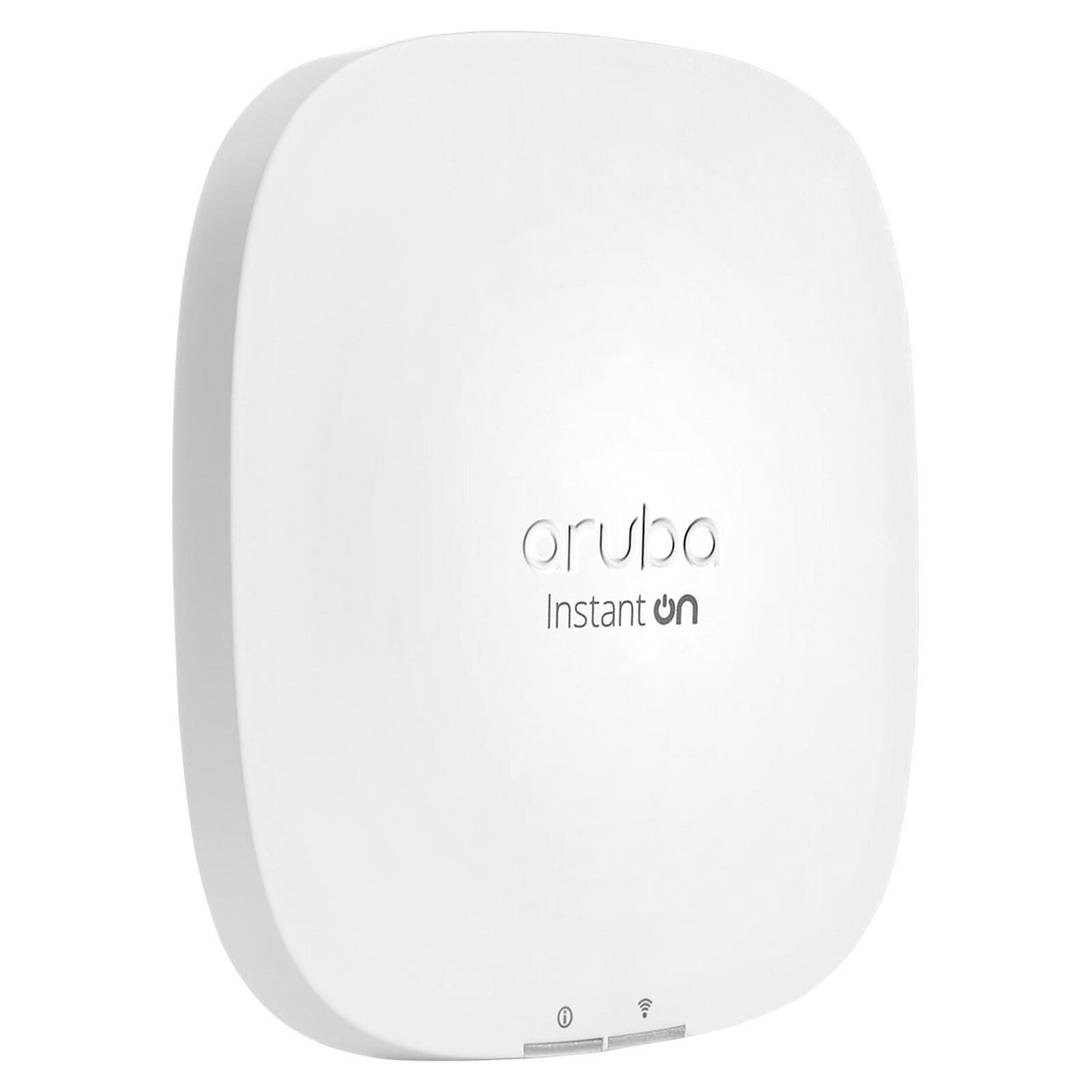

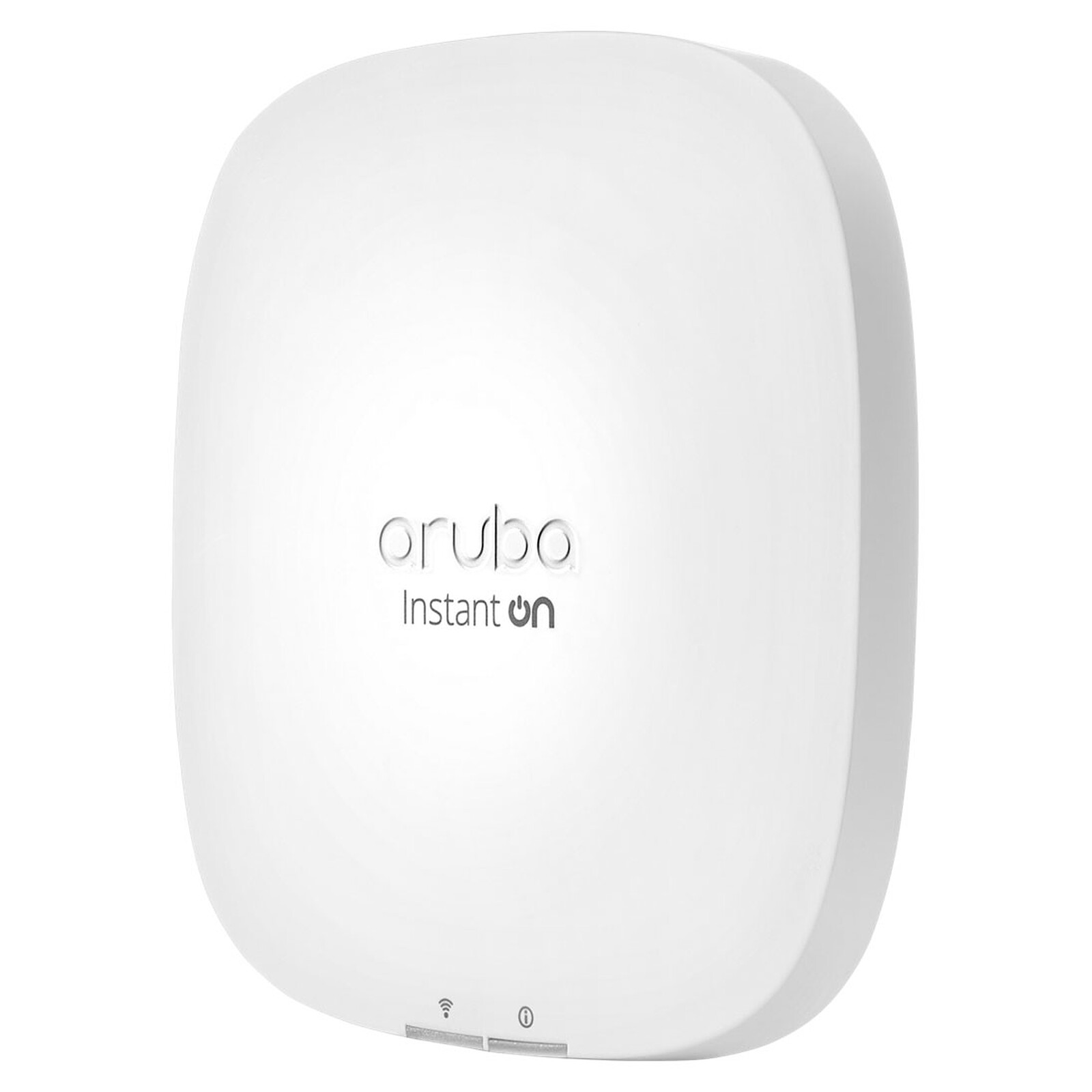

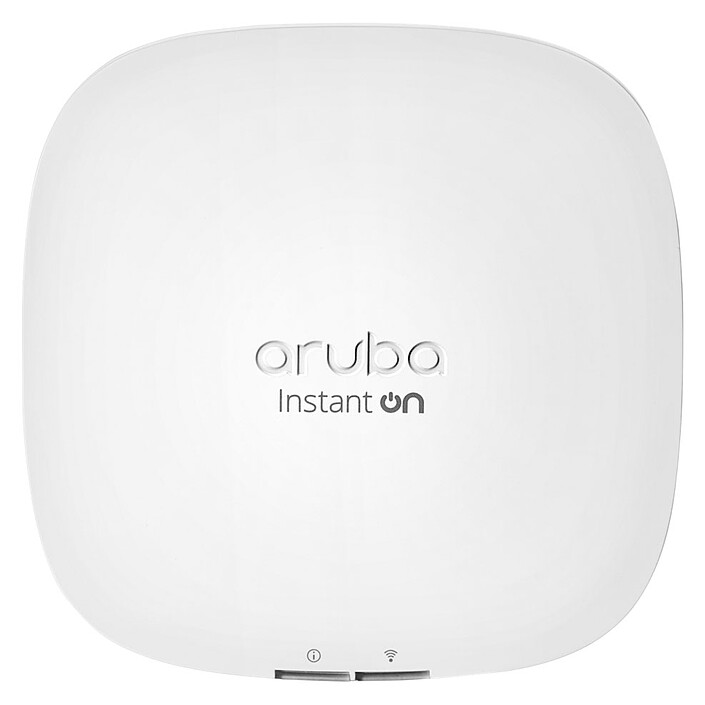

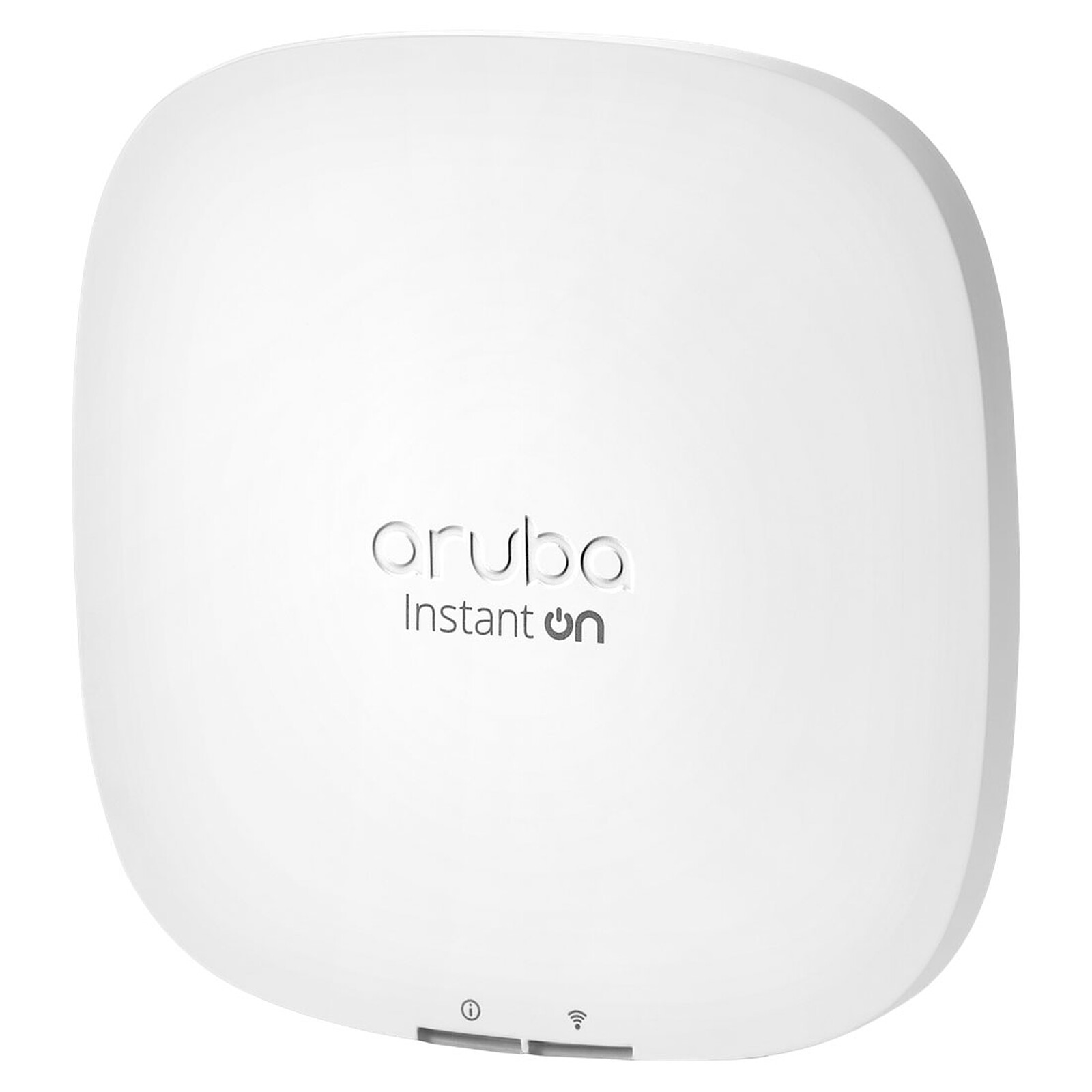

The HPE Networking Instant On Access Point AP22 (R4W02A) is an indoor, 2×2 MU-MIMO Wi-Fi 6 (802.11ax) access point designed for small businesses. It offers combined data rates up to 1.7 Gbps (1.2 Gbps 5GHz, 574 Mbps 2.4GHz), features integrated Bluetooth, supports Smart Mesh technology, and is powered by 802.3af PoE or 12V DC.
Key Technical Specifications for R4W02A
- Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
- Radios: Dual-radio (2.4 GHz & 5 GHz) 2×2 MIMO
- Data Rates: 1.2 Gbps (5 GHz), 574 Mbps (2.4 GHz)

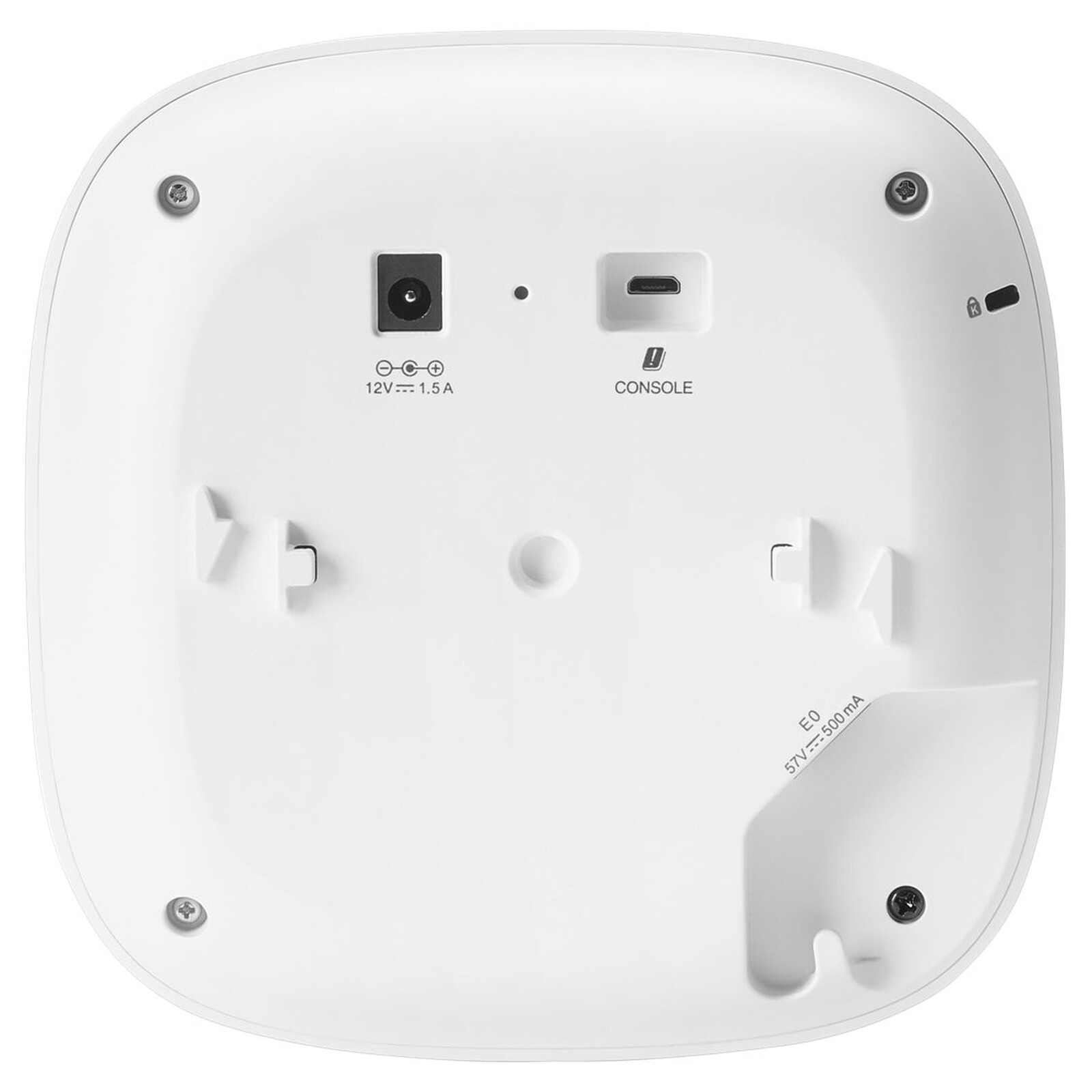

- Interfaces: 1 x Gigabit Ethernet (10/100/1000 Mbps) with PoE-in
- Power: 802.3af PoE (Class 3) or 12V DC
- Antenna: Internal omni-directional antennas
- Management: Web GUI, Mobile App (Instant On)
- Security: WPA2/WPA3 support, Built-in firewall
- Dimensions & Weight: 160mm x 160mm x 37mm; 500g
- Mounting: Ceiling/Wall mount included
